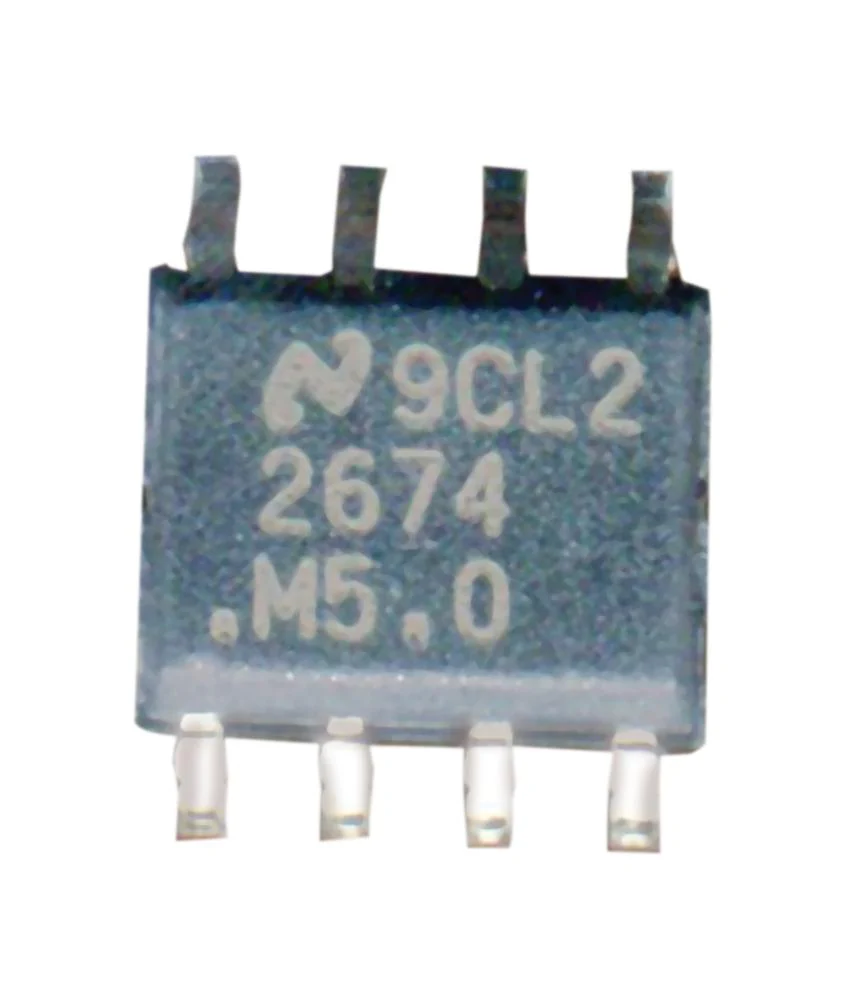

TEXAS INSTRUMENTS LM2674M-5.0/NOPB STEP-DOWN REGULATOR, 8-SOIC
The LM2674 series of regulators are monolithic integrated circuits built with a LMDMOS process. These regulators provide all the active functions for a step-down (buck) switching regulator, capable of driving a 500-mA load current with excellent line and load regulation.
- Efficiency up to 96%
- Simple and easy to design with
- ±1.5% maximum output voltage tolerance over line and load conditions
- Ensured 500mA output load current
- 0.25Ω DMOS output switch
- 260kHz fixed frequency internal oscillator
- TTL Shutdown capability, low power standby mode
Product details
| Input Voltage Min: 8V |
| Input Voltage Max: 40V |
| No. of Pins: 8Pins |
| Output Current: 500mA |
| Output Voltage Nom: 5V |
| Switching Frequency: 260kHz |
| Operating Temperature Max: 125°C |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | LM2674M-5.0/NOPB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
