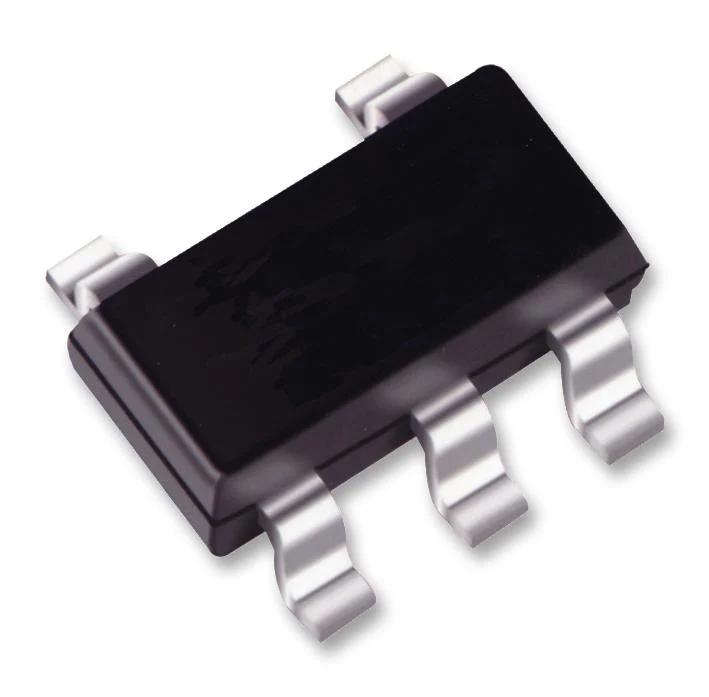

Texas Instruments LP2980AIM5-3.3/NOPB Fixed LDO Voltage Regulator 2.1 V to 16 120 mV Dropout 3.3 V/50 mA out SOT-23-5

The LP2980AIM5-3.3/NOPB is a fixed-output Voltage Regulator designed specifically to meet the requirements of battery-powered applications. Using an optimized VIP (vertically integrated PNP) process, the LP2980-N delivers unequaled performance in all specifications critical to battery-powered designs of dropout voltage, ground pin current, sleep mode, minimum part count and precision output.

• Ultralow dropout voltage
• Requires only 1µF external capacitance
• Low ground pin current at all load currents
• High peak current capability (150mA typical)
• Fast dynamic response to line and load
• Low ZOUT over wide frequency range
• Ensured 50mA output current
• 0.5% (A Grade) Output voltage accuracy
• <1µA Quiescent current when shutdown

Applications

Consumer Electronics, Computers & Computer Peripherals

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LP2980AIM5-3.3/NOPB
Quantity	Each (Supplied on Cut Tape)
