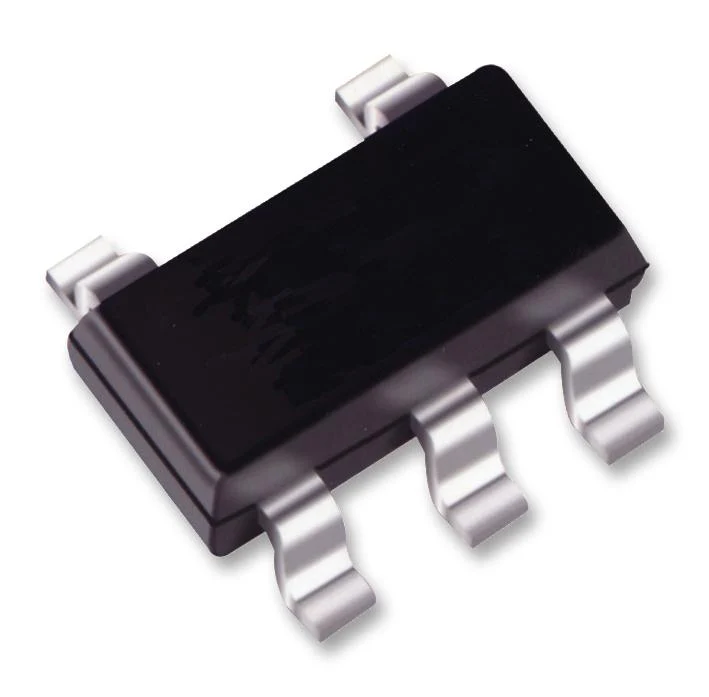

Texas Instruments LP2980AIM5-5.0/NOPB Fixed LDO Voltage Regulator 2.1V to 16V 120mV Dropout 5Vout 50mAout SOT-23-5

The LP2980AIM5-5.0/NOPB is a 5V fixed output ultra-low-dropout (LDO) Linear Regulator designed specifically to meet the requirements of battery-powered applications. Using an optimized VIP (Vertically integrated PNP) process, the device delivers unequalled performance in all specifications critical to battery-powered designs, Dropout voltage - typically 120mV at 50mA load and 7mV at 1mA load. Ground pin current - typically 375µA at 50mA load and 80µA at 1-mA load. Sleep mode - less than 1µA quiescent current when ON/OFF pin is pulled low. Minimum part count - requires only a 1µF capacitor on the regulator output.

• Ultra-low-dropout voltage
• 0.5% Output voltage accuracy
• <1µA Quiescent current when shutdown
• Low ground pin current at all load currents
• High peak current capability (150mA typical)
• Fast dynamic response to line and load
• Low ZOUT over wide frequency range
• Overtemperature and overcurrent protection
• Green product and no Sb/Br

Applications

Consumer Electronics, Computers & Computer Peripherals, Power Management, Imaging, Video & Vision

Other details

Brand	TEXAS INSTRUMENTS
Part Number	LP2980AIM5-5.0/NOPB
Quantity	Each (Supplied on Cut Tape)
Product Change Notice EN
