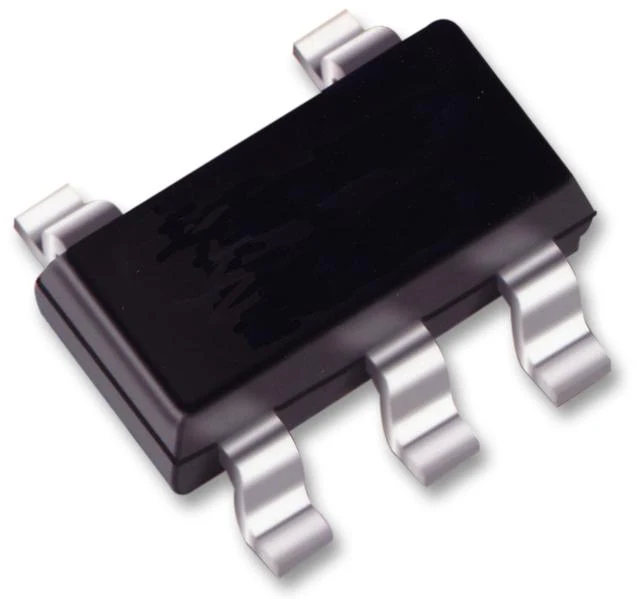

Texas Instruments OPA694IDBVT Operational Amplifier 1 1.5 GHz 1.7 kV/µs 7V to 12.6V SOT-23 5 Pins

The OPA694IDBVT is an ultra-wideband low-power Current Feedback Amplifier features high slew rate and low differential gain/phase errors. An improved output stage provides ±80mA output drive with <1.5V output voltage headroom. Low supply current with >500MHz bandwidth meets the requirements of high-density video routers. Being a current feedback design, the OPA694 holds its bandwidth to very high gains-at a gain of 10, the OPA694 will still provide 200MHz bandwidth. RF applications can use the OPA694 as a low-power SAW pre-amplifier. Extremely high 3rd-order intercept is provided through 70MHz at much lower quiescent power than many typical RF amplifiers.

• 690MHz High gain of 2V/V bandwidth
• 5.8mA Low supply current
• 675MHz High full-power bandwidth
• 0.03%/0.015° Low differential gain/phase
• Green product and no Sb/Br

Applications

Signal Processing

Other details

Brand	TEXAS INSTRUMENTS
Part Number	OPA694IDBVT
Quantity	Each (Supplied on Cut Tape)
