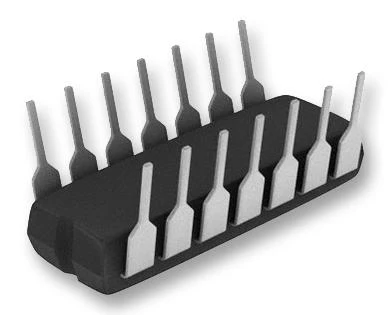

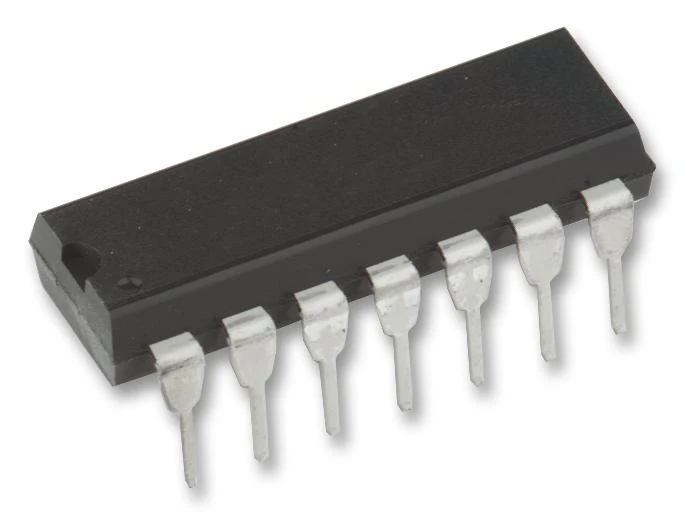

TEXAS INSTRUMENTS SN74HC14N Logic IC, Inverter, 1 Inputs, 14 Pins, DIP, SNx4HC14
The SN74HC14N is a Schmitt-trigger IC, contains six independent inverters. It performs the Boolean function Y = A in positive logic.
- Outputs Can Drive up to 10 LSTTL Loads
- Low-power Consumption, 20µA Maximum ICC
- 11ns Typical Propagation Delay Time
- ±4mA Output Drive at 5V
- Low Input Current of 1µA Maximum
Applications
Aerospace, Defence, Military
Warnings
ESD sensitive device, take proper precaution while handling the device, ESD damage can range from subtle performance degradation to complete device failure.
Product details
| Automotive Qualification Standard: -888 |
| MSL: - |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74HC14N |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$0.58
Original: $1.93
-70%TEXAS INSTRUMENTS SN74HC14N Logic IC, Inverter, 1 Inputs, 14 Pins, DIP, SNx4HC14—
$1.93
$0.58More Images
TEXAS INSTRUMENTS SN74HC14N Logic IC, Inverter, 1 Inputs, 14 Pins, DIP, SNx4HC14
The SN74HC14N is a Schmitt-trigger IC, contains six independent inverters. It performs the Boolean function Y = A in positive logic.
- Outputs Can Drive up to 10 LSTTL Loads
- Low-power Consumption, 20µA Maximum ICC
- 11ns Typical Propagation Delay Time
- ±4mA Output Drive at 5V
- Low Input Current of 1µA Maximum
Applications
Aerospace, Defence, Military
Warnings
ESD sensitive device, take proper precaution while handling the device, ESD damage can range from subtle performance degradation to complete device failure.
Product details
| Automotive Qualification Standard: -888 |
| MSL: - |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74HC14N |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
