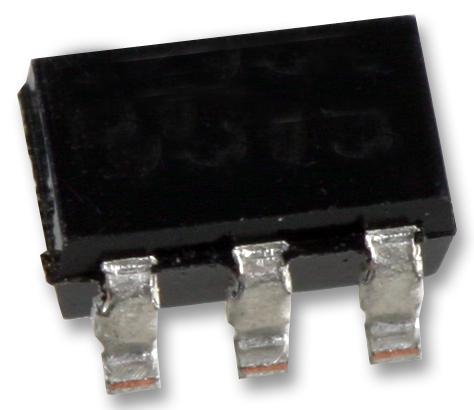

Texas Instruments TPS562201DDCT TPS562201DDCT DC-DC Switching Sync-Buck (Step Down)Regulator Adj 4.5V-17Vin 760mV-7V/2A out 580 kHz SOT-23-6
Texas Instruments TPS562201DDCT TPS562201DDCT DC-DC Switching Sync-Buck (Step Down)Regulator Adj 4.5V-17Vin 760mV-7V/2A out 580 kHz SOT-23-6
The TPS562201DDCT is a 4.5V to 17V input, 2A synchronous step down voltage regulator in 6 pin SOT-23 package. This device is simple, easy-to-use and are optimized to operate with minimum external component counts and also optimized to achieve low standby current. The switch mode power supply (SMPS) device employ D-CAP2 mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. It operates in pulse skip mode which maintains high efficiency during light load operation. It is used in digital TV power supply, high definition Blu-ray disc players, networking home terminal, digital set top box (STB) and surveillance.
- Input voltage range of 4.5V to 17V, Integrated 140mohm and 84mohm FETs
- Output voltage range of 0.76V to 7V
- Pulse skip mode
- Switching frequency of 580KHz
- Low shutdown current less than 10µA
- 2% feedback voltage accuracy (25°C)
- Start-up from pre-biased output voltage
- Cycle-by-cycle overcurrent limit
- Hiccup mode overcurrent protection
- Non latch UVP and TSD protections, 1ms fixed soft-start
Power Management, Industrial, Consumer Electronics
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | TPS562201DDCT |
| Quantity | Each (Supplied on Cut Tape) |
| Product Change Notice EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
