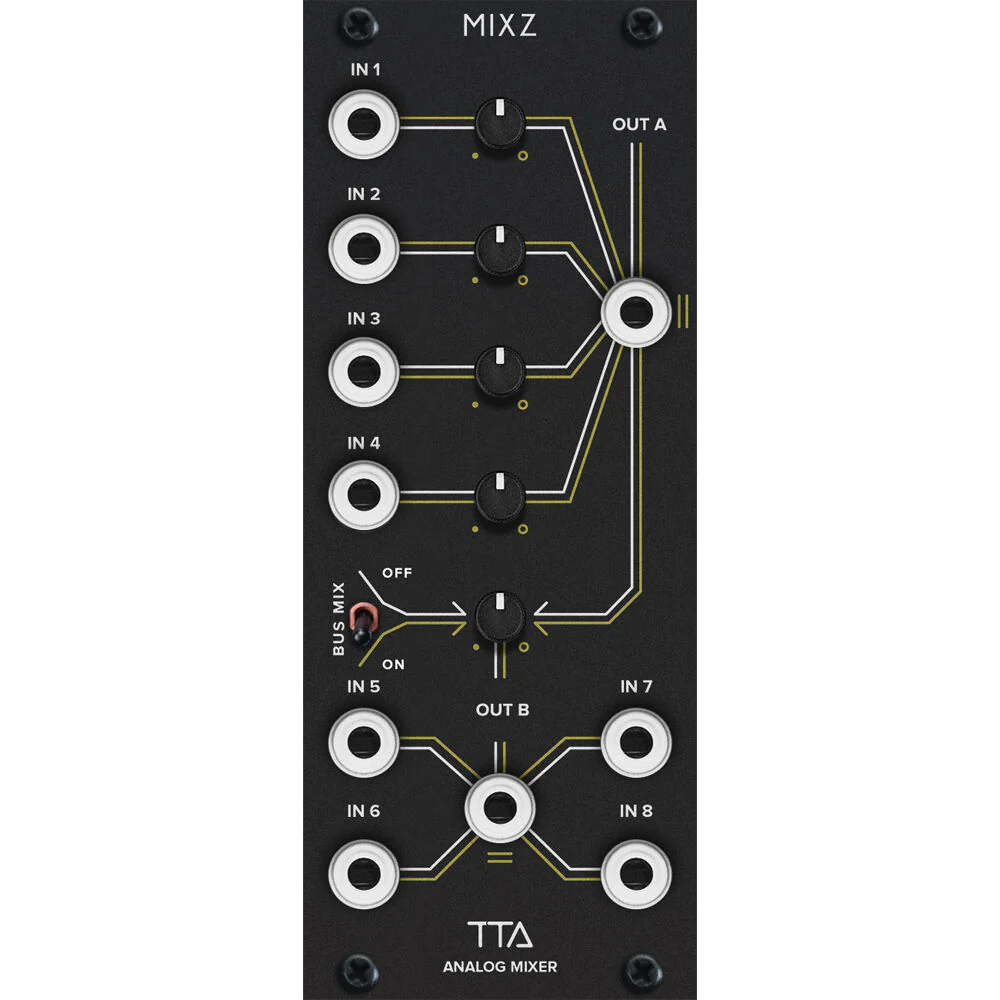

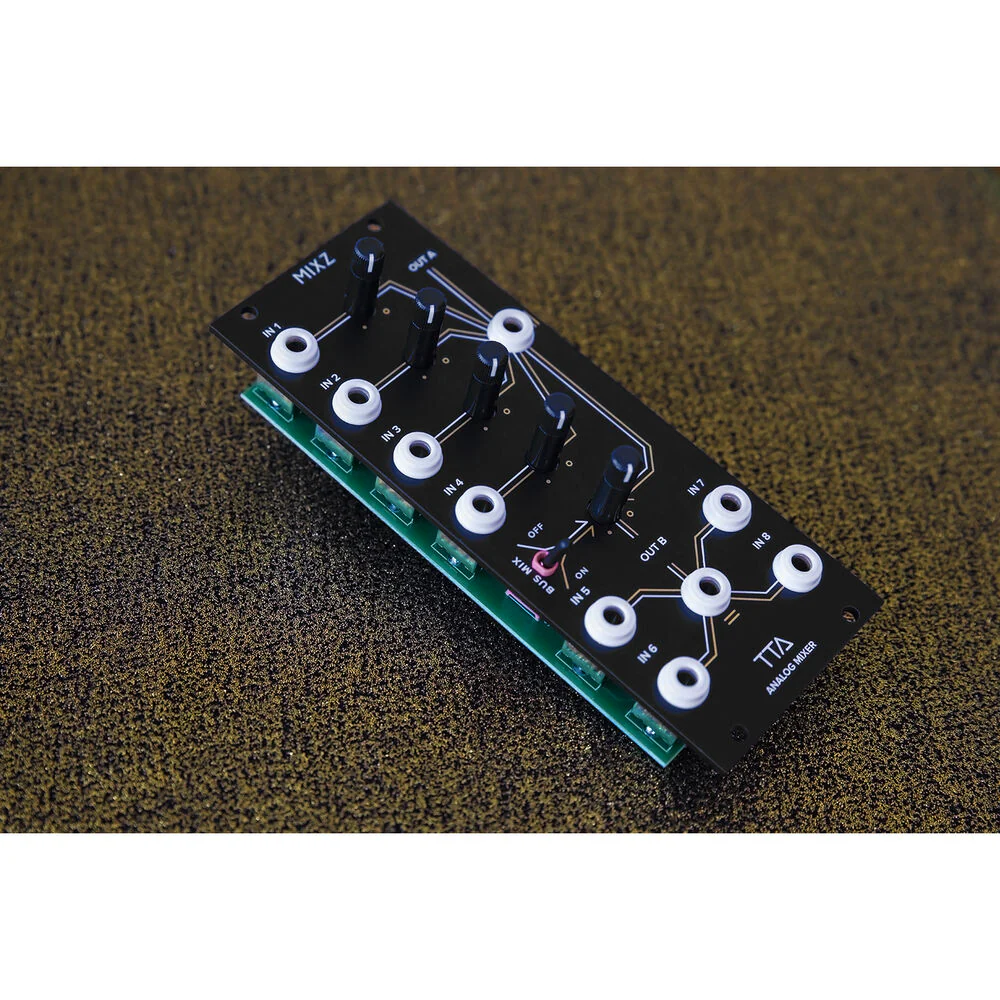

TipTop Audio MIXZ Mixer Eurorack Module (10 HP, White)
TipTop Audio MIXZ BK Overview
Mix audio, CV, and gate signals with the white Tiptop Audio MIXZ, a dual 4-channel mixer or single eight-channel mixer with an innovative mix bus, which connects audio signals through the Eurorack power busboard.
Mixer A includes four independent gain controls for each channel, while Mixer B utilizes a single master gain control. If the output of Mixer A is not in use, then Mixer A will be routed internally to Mixer B forming an 8-channel mixer.
At a Glance
- Low-cost analog, multichannel mixing module
- For mixing audio, CV, and gate signals
- Two 4-channel mixers or one 8-channel mixer
- High-quality mixing circuitry
- Plenty of headroom
- Smooth, organic merge of dynamics and excellent channel separation

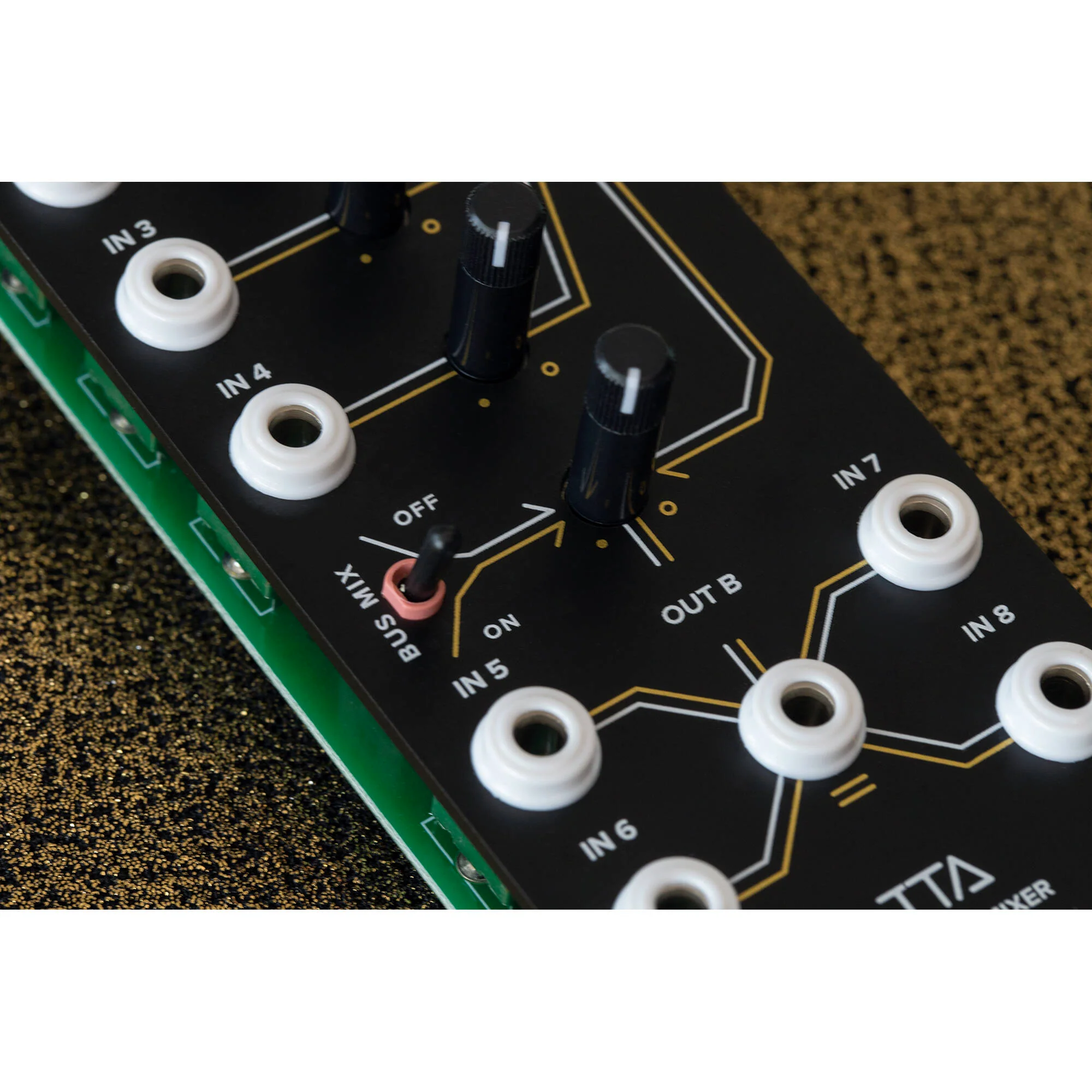

Mixer Sections
MIXZ has three sections:

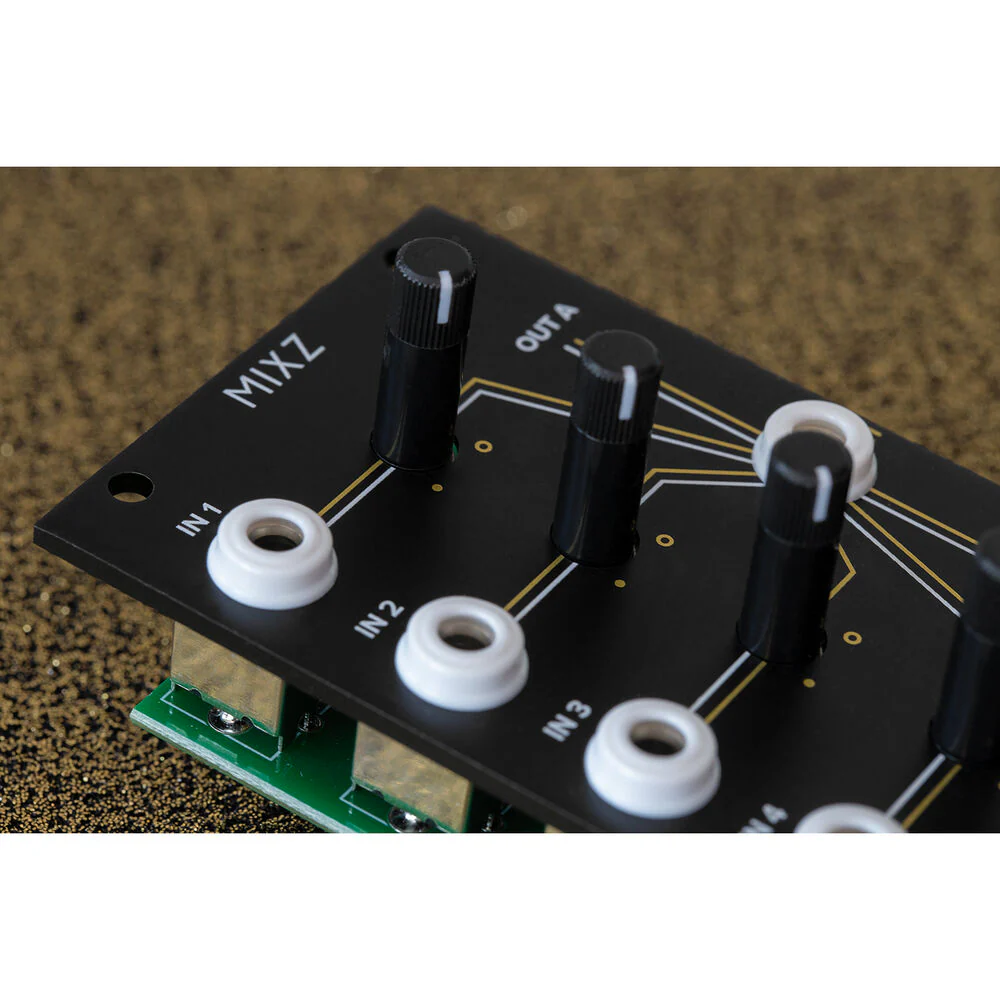

- Mixer A: a low-noise 4-channel mixer with independent gain control for each channel.

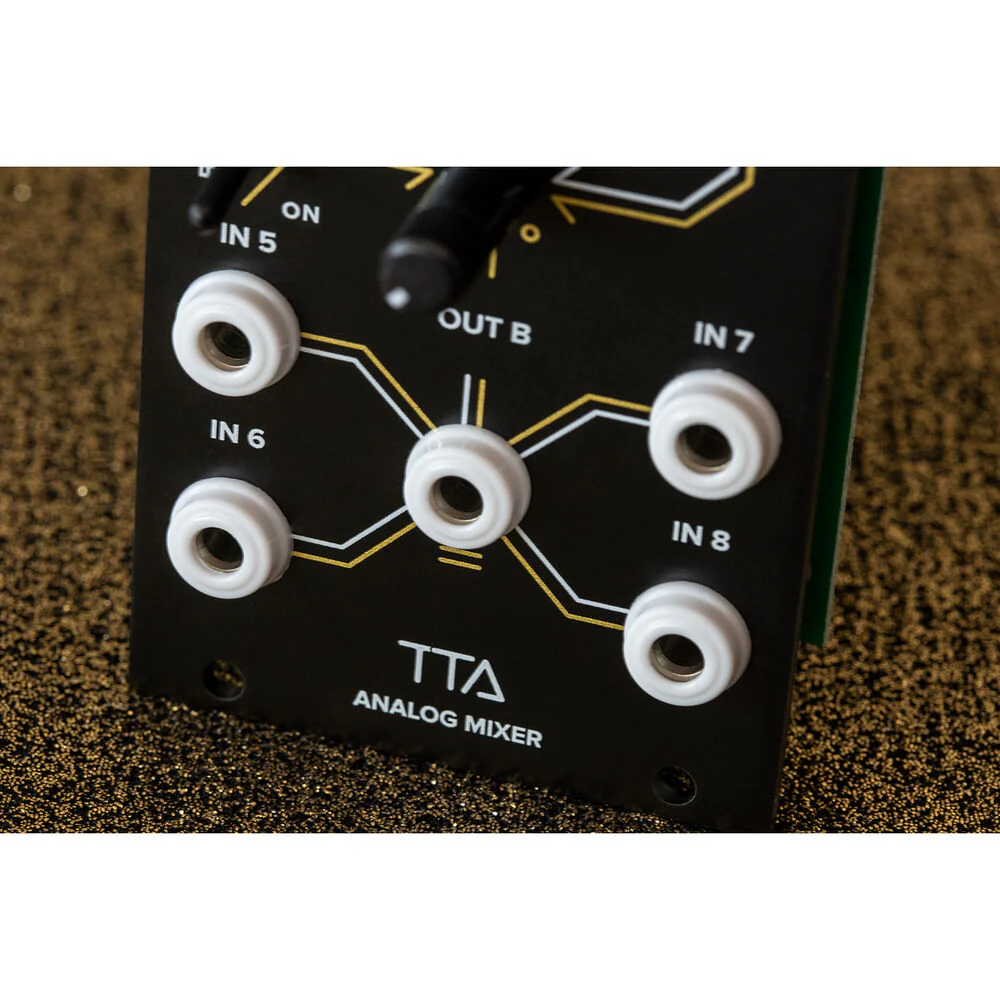

- Mixer B: a low- noise 4-channel mixer with master gain control.
- Bus Mix: a multichannel mixer that mixes signals from modules utilizing the Tiptop MixBus.
Mixer A and B can be configured as either two independent, 4-channel mixers or as a single 8-channel mixer. If the output of Mixer A is not in use, then Mixer A will be routed internally to Mixer B forming the 8-channel mixer.
Bus Mix Technology
Tiptop Bus Mix is a new method Tiptop Audio developed to mix audio signals through connectors on the back of the module instead of patch cables. Although this technique is not ideal for a low-noise mix, it proved to be useful for some applications, including mixing drum modules, which all have a Bus-Mix-enabled output. The result is that your drum modules are always available and mixed on the master out of the MIXZ with a flip of a switch. This will save you time and frees up cables for repatching sound again and again, while keeping the channels of MIXZ free to bring other signals into the mix.
Eurorack Ready
- 10 HP Eurorack format module
- Maximum depth: 1.7" (43mm)
- Includes ribbon power cable with Eurorack power headers
- Power consumption: +12V: 14mA, -12V: 14mA
In the Box
- TipTop Audio MIXZ Mixer Eurorack Module (10 HP, White)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
TipTop Audio MIXZ BKSpecs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
8x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
8x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
14 mA on +12 V Rail
14 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
External Audio (Level)
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
8x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
No
|
| Patch Points |
8x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
14 mA on +12 V Rail
14 mA on -12 V Rail |
Physical
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.335 lb
|
| Box Dimensions (LxWxH) |
5.8 x 4 x 2.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
