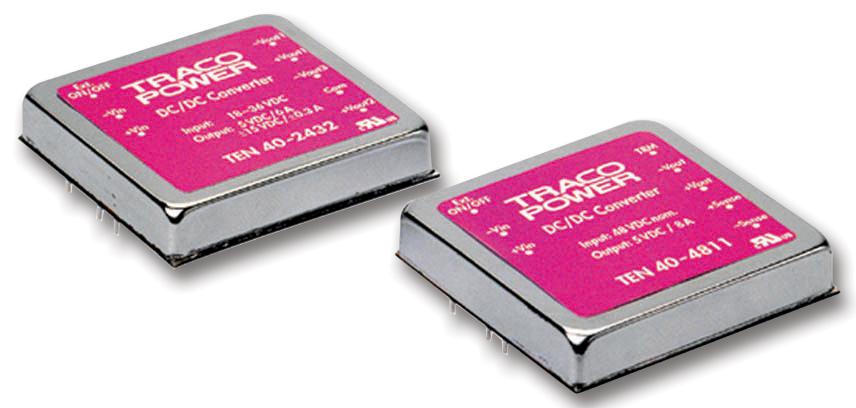

Traco Power TEN 40-2411 TEN 40-2411 Isolated Through Hole DC/DC Converter ITE 2:1 40 W 1 Output 5 V 8 A

The TEN 40-2411 is a high performance 40W DC-DC Converter Module featuring wide 2:1 input voltage range of 18 to 36VDC in a compact low profile case with industry-standard footprint. A very high efficiency allows an operating temperature range of -40 to 75°C. Built-in filters for both input and output minimize the need for external filtering. Further standard features include remote 5VDC/8A output, remote ON/OFF, output voltage trimming, overvoltage protection and under-voltage lockout and short-circuit protection. This device is suitable for use in battery operated equipment and many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.

• Shielded metal case with insulated base plate
• 89% Typical efficiency
• 24VDC Nominal input voltage

Applications

Communications & Networking, Consumer Electronics, Power Management

Other details

Brand	TRACO POWER
Part Number	TEN 40-2411
Quantity	Each
Technical Data Sheet EN
Application Note EN
Miscellaneous EN
