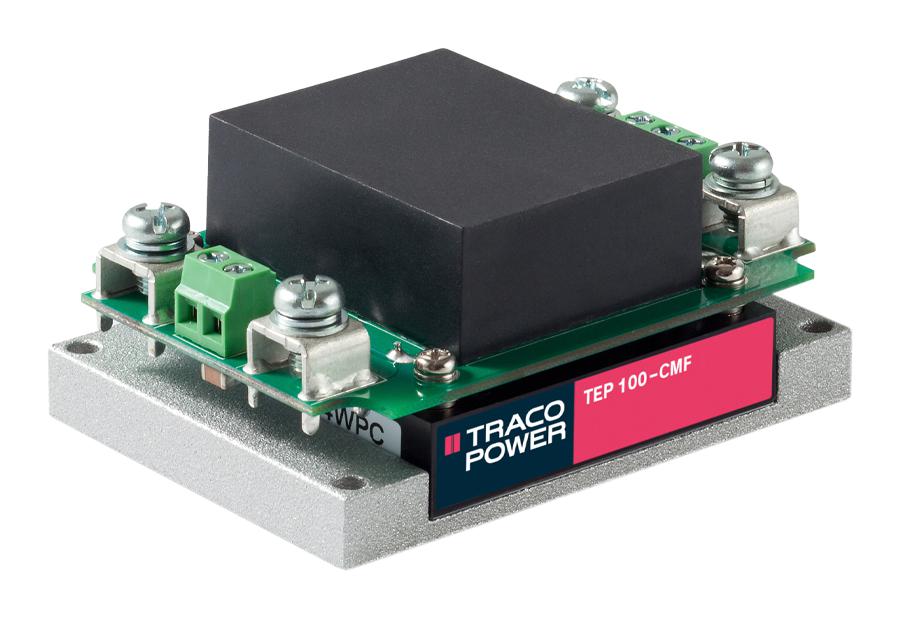

TRACO POWER TEP 100-2412-CMF Isolated Chassis Mount DC/DC Converter, ITE, 2:1, 100 W, 1 Output, 12 V, 8.4 A

TEP 100CMF series is a family of isolated high performance DC/DC converter modules. These converters are suitable for a wide range of applications, but the product is designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. Four threaded M3 inserts in the module makes chassis mount or attachment of a heatsink for optimal thermal management very simple. For easy connection there is also an unique adaptor available with screw terminals. A very high efficiency allows an operating temperature up to +60°C with natural convection cooling without power derating. Further features include output voltage trimming, remote on/off and undervoltage lockout. The very wide input voltage range and reverse input voltage protection make these converters also an interesting solution for battery operated systems.

• Ultra wide 2:1 input voltage range
• Input protection filter
• 3-year product warranty
• Continuous, automatic recovery short circuit protection
• EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards
• Switching frequency of 270 to 330KHz (PWM), 300KHz typically (PWM)
• Rugged sealed metal case and non-conductive FR4 (UL94 V-0 rated) base material
