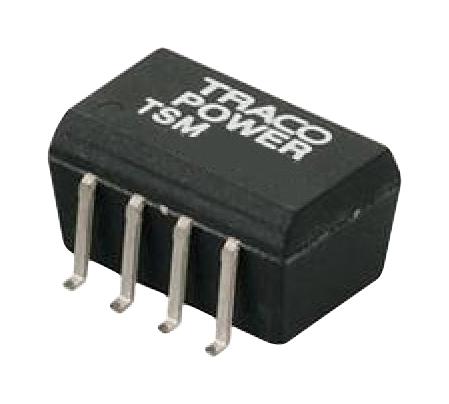

Traco Power TSM 2405S TSM 2405S Isolated Surface Mount DC/DC Converter 1:1 1 W Output 5 V 200 mA

TSM series are isolated DC/DC converters with 1W output power implemented in a moulded plastic package with a pin accuracy suitable for automated SMD production. The devices can be soldered without any problems in a high temperature lead free solder process. With their small footprint these converters are the economical solution for point of load power conversion, ground loop elimination, noise reduction and digital interface applications.

• SMD package
• Construction in lead frame technology
• Isolated single output
• I/O isolation voltage of 1000VDC, high efficiency
• Operating temperature range from -40°C to +85°C
• Reflow solder temperature up to 245°C
• High accuracy of pin co-planarity
• 3-year product warranty
• Epoxy moulding compound (flammability to UL 94V-0 rated) case
• Switching frequency of 100KHz typically (frequency modulation)

Other details

Brand	TRACO POWER
Part Number	TSM 2405S
Quantity	Each
Technical Data Sheet EN
