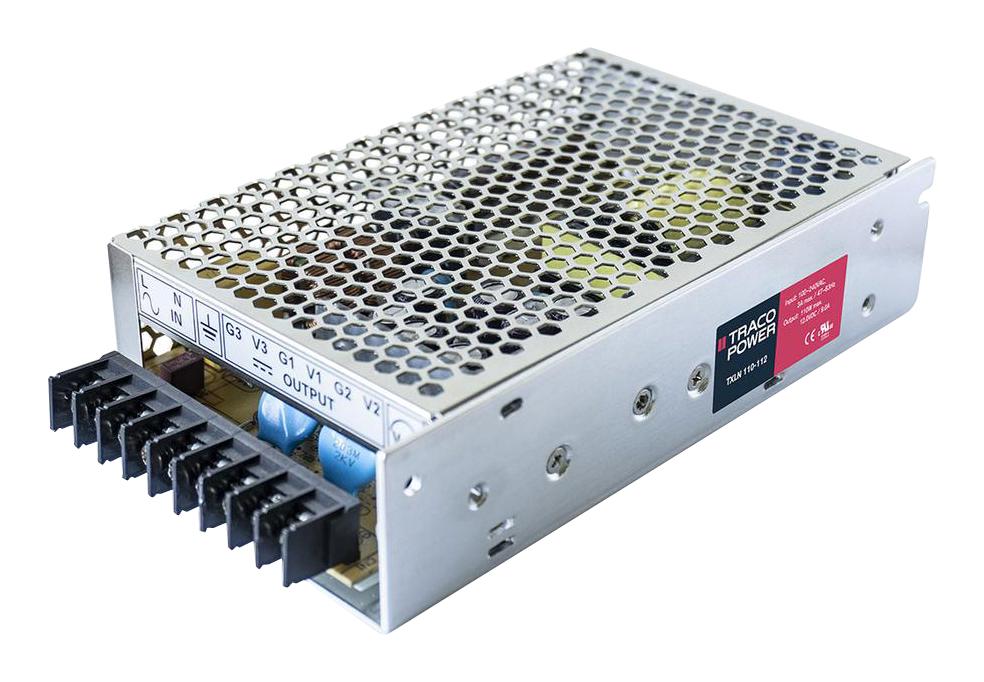

Traco Power TXLN 110-112 AC/DC Enclosed Supply (PSU) ITE 1 Outputs 110 W 12 VDC 9.2 A

TXLN 110 series is a family of encased power supplies designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, they are easy to install in any equipment. These power supplies have universal input (88-264VAC) and comply with European EMC standards and the Low Voltage Directive (LVD).

• Convection cooled (no-fan)
• High efficiency up to 85%
• Compliance to EN 61000-3-2
• Short circuit, overvoltage and overload protection
• IEC/EN/UL 62368-1 safety approvals
• 3 year product warranty
• Protection class I (prepared): connection to PE
• Pollution degree PD 2, overvoltage category OVC II
• Operating temperature range from -20°C to +70°C, switching frequency of 61KHz to 69KHz (PWM)
• Aluminium housing, screw terminal connection type

Other details

Brand	TRACO POWER
Part Number	TXLN 110-112
Quantity	Each
Technical Data Sheet EN
