Triad-Orbit SM-SW1 Speaker Mount Swivel for SM-1 System
Triad-Orbit SM-SW1 Overview

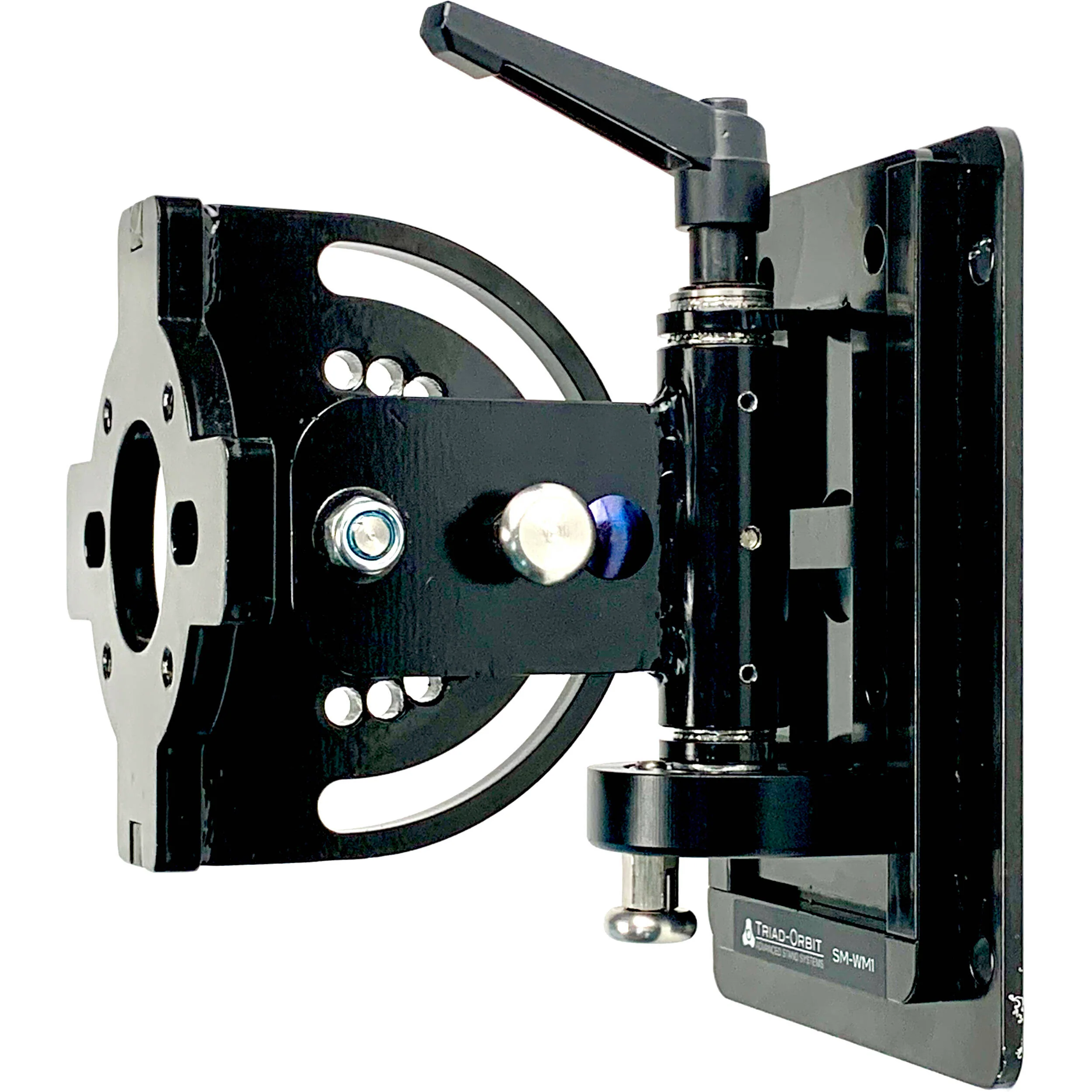

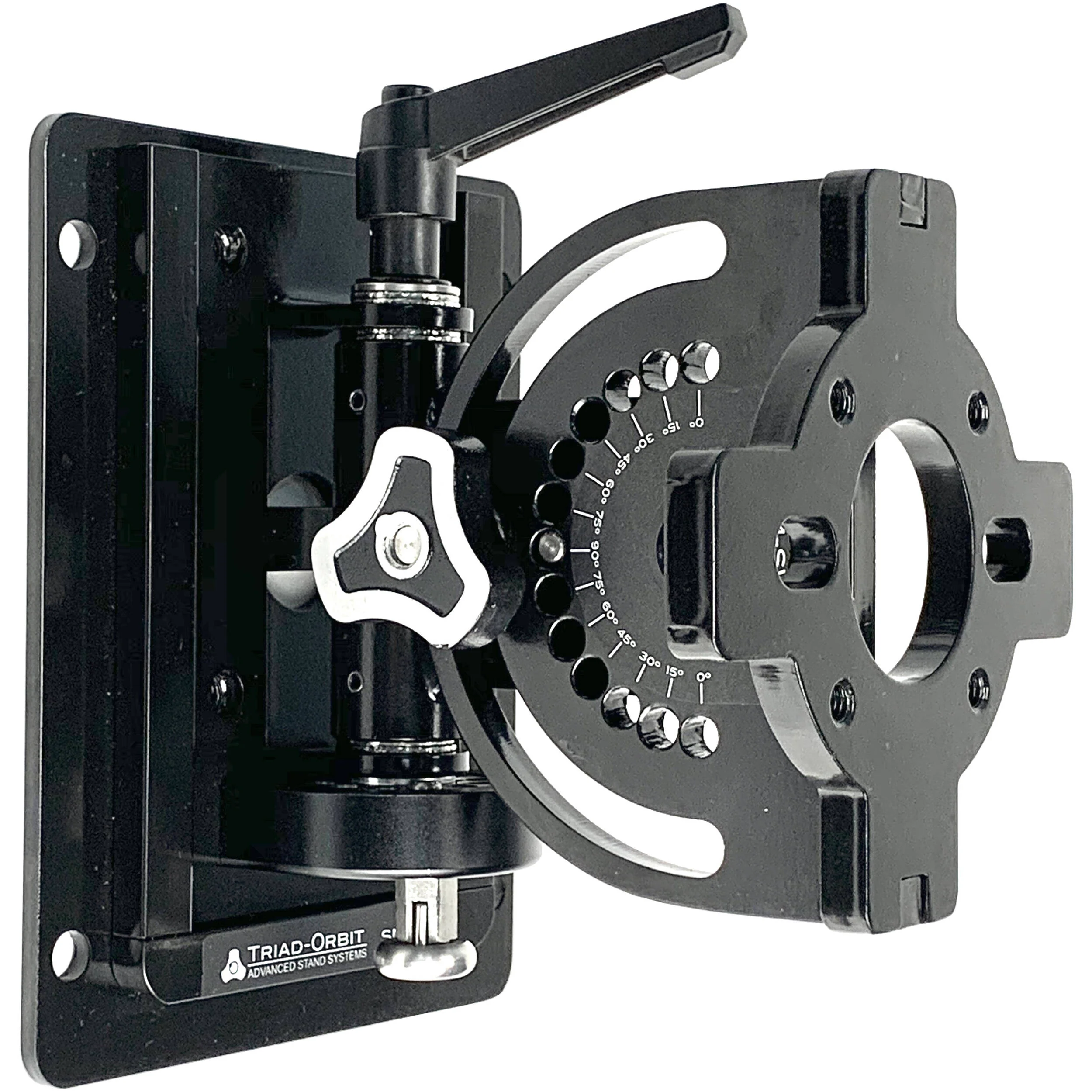

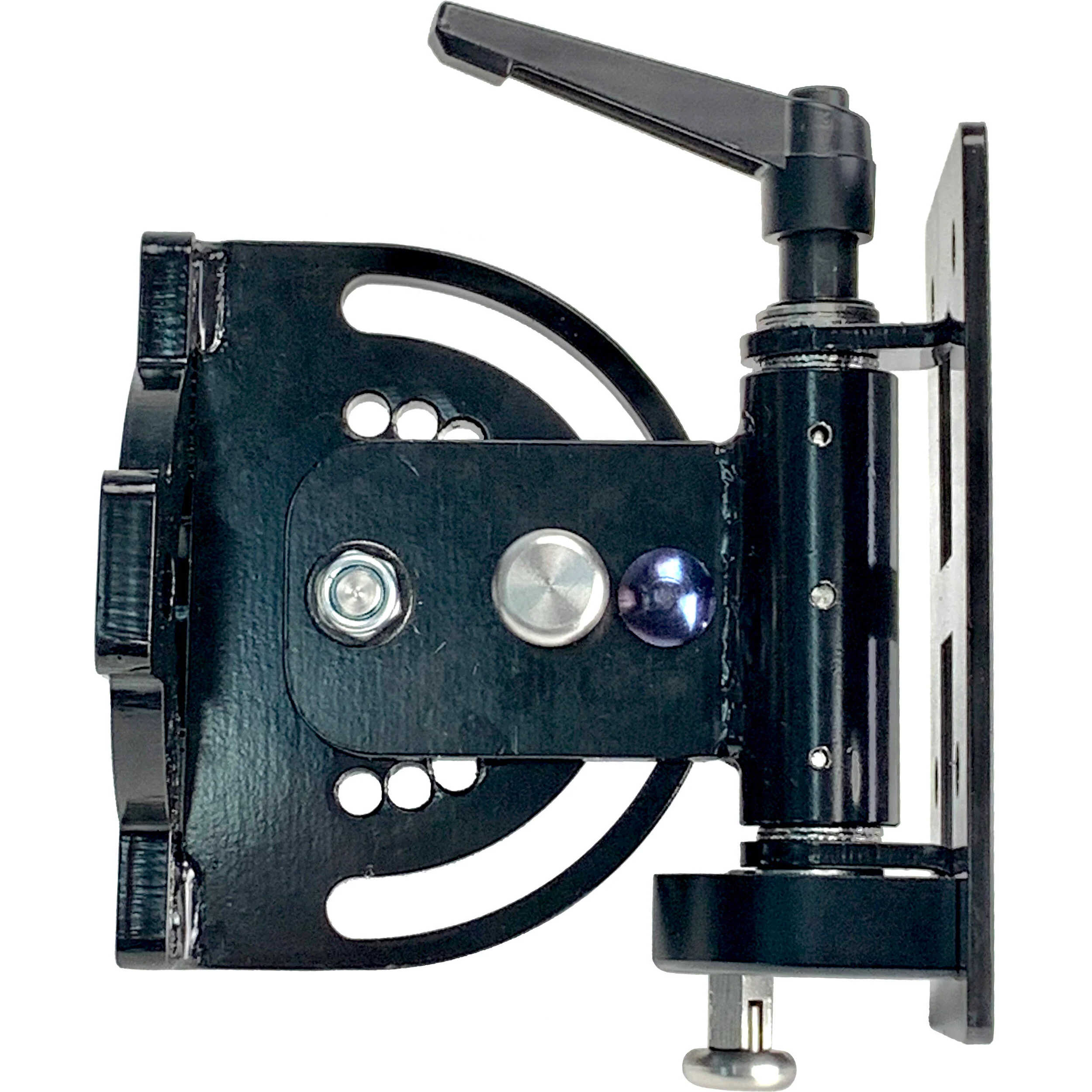

The Triad-Orbit SM-SW1 is the main pan and tilt swivel designed for Triad-Orbit's SM-1 Dolby Atmos speaker wall-mounting system. It can connect directly to speakers with a 50 to 80mm dual hole pattern or accept the versatile array of Triad-Orbit's speaker mounting plates. The SM-SW1 features 180? of tilt?90? forward and 90? back?adjustable in 15? increments. The locking spring pin and tension knobs keep the SM-SW1 securely held in the desired position.
- Accommodates speaker mounting plates in the Triad-Orbit Precision AV Atmos Speaker Mount System series
- Connects directly to speakers that have a dual hole pattern (50 to 80mm)
- Spring pins in 15? increments
- Secondary tension locks in both tilt and pan axis
Items Included
- Triad-Orbit SM-SW1 Speaker Mount Swivel for SM-1 System
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Triad-Orbit SM-SW1 Specs
| Type |
Wall Mount
|
| Tilt Angle |
180? (90 to 90?)
|
| Package Weight |
4.555 lb
|
| Box Dimensions (LxWxH) |
9.3 x 6.4 x 6.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
