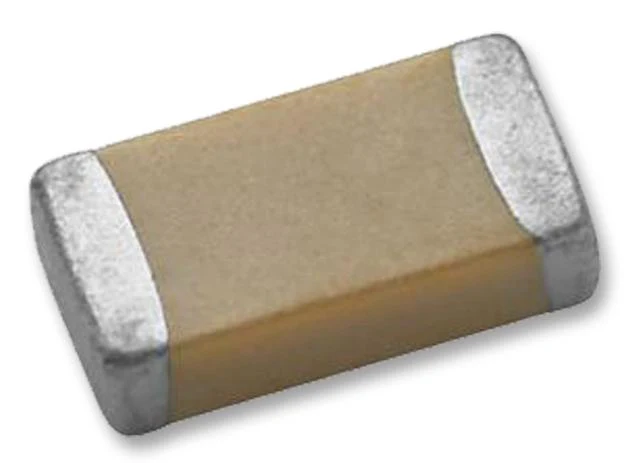

Vishay HV1812Y152KXVATHV SMD Multilayer Ceramic Capacitor 1500 pF 4 kV 1812 [4532 Metric] ± 10% X7R HV

The Vishay HV high voltage series are surface mount multilayer ceramic chip capacitors with X7R dielectric. The capacitance range includes 180pF to 15nF. These multilayer ceramic chip capacitors are used for high voltage applications. They have excellent reliability and thermal shock performance. These capacitors can be used as include input filter capacitors, output filter capacitors, snubber capacitors to reduce MOSFET voltage spikes and filtering for switching power supplies.

• High voltage breakdown compared to standard design
• High reliable serial electrode design
• Protective surface coating may be required to prevent surface arcing
• Wet build process and Ni barrier 100% tin plated matte finish
• Reliable noble metal electrode (NME) system
• EIA 1812, 1825, 2220, 2225 case sizes available
• Available with 3000VDC, 4000VDC and 5000VDC voltages
• Temperature coefficient of capacitance (TCC) is ±15% from -55°C to +125°C with 0 VDC applied
• Available with ±5%, ±10% and ±20% capacitance tolerance
• Operating temperature range from -55°C to +125°C

Applications

Industrial, Power Management, Consumer Electronics, Portable Devices

Other details

Brand	VISHAY
Part Number	HV1812Y152KXVATHV
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
