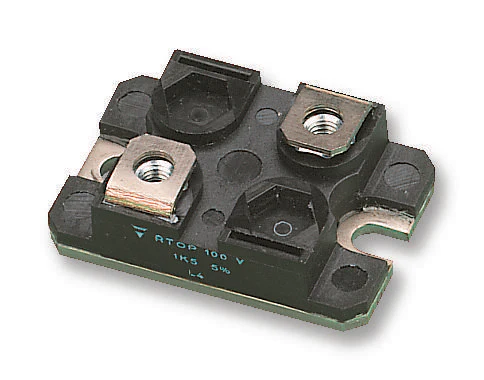

Vishay RTOP100V1002JB RTOP100V1002JB Resistor 10 Kohm Rtop 100 W ± 5% Screw 1.5 kV
The RTOP series from Vishay are thick film power resistors for mounting onto a heatsink. This series of thick film power resistors include modules which can incorporate up to 2 different resistor values in the same SOT-227B package. Two types of terminations are available along with a 4 terminal device for measurement applications in the case of the single resistor version.
- Resistance range from 0.046ohm to 1Mohm
- High power rating up to 200W
- Available in ±1%, ±2%, ±5% and ±10% tolerance values
- Temperature coefficient is ±300ppm/°C (R < 1), ±150ppm/°C (R > 1)
- Insulation resistance is greater than 10^6Mohm
- Cermet resistive element and alumina on insulated base substrate
- Temperature range from -55°C to +125°C
- Non inductive, easy mounting
- Low thermal radiation of the case, excellent overload capabilities
- High voltage, high power resistor
Other details
| Brand | VISHAY |
| Part Number | RTOP100V1002JB |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$32.08
Original: $106.92
-70%Vishay RTOP100V1002JB RTOP100V1002JB Resistor 10 Kohm Rtop 100 W ± 5% Screw 1.5 kV—
$106.92
$32.08Vishay RTOP100V1002JB RTOP100V1002JB Resistor 10 Kohm Rtop 100 W ± 5% Screw 1.5 kV
The RTOP series from Vishay are thick film power resistors for mounting onto a heatsink. This series of thick film power resistors include modules which can incorporate up to 2 different resistor values in the same SOT-227B package. Two types of terminations are available along with a 4 terminal device for measurement applications in the case of the single resistor version.
- Resistance range from 0.046ohm to 1Mohm
- High power rating up to 200W
- Available in ±1%, ±2%, ±5% and ±10% tolerance values
- Temperature coefficient is ±300ppm/°C (R < 1), ±150ppm/°C (R > 1)
- Insulation resistance is greater than 10^6Mohm
- Cermet resistive element and alumina on insulated base substrate
- Temperature range from -55°C to +125°C
- Non inductive, easy mounting
- Low thermal radiation of the case, excellent overload capabilities
- High voltage, high power resistor
Other details
| Brand | VISHAY |
| Part Number | RTOP100V1002JB |
| Quantity | Each |
| Technical Data Sheet EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
