Vocas USBP-15 MKII Shoulder Baseplate for RED KOMODO-X & V-RAPTOR
Vocas USBP-15 MKII Overview

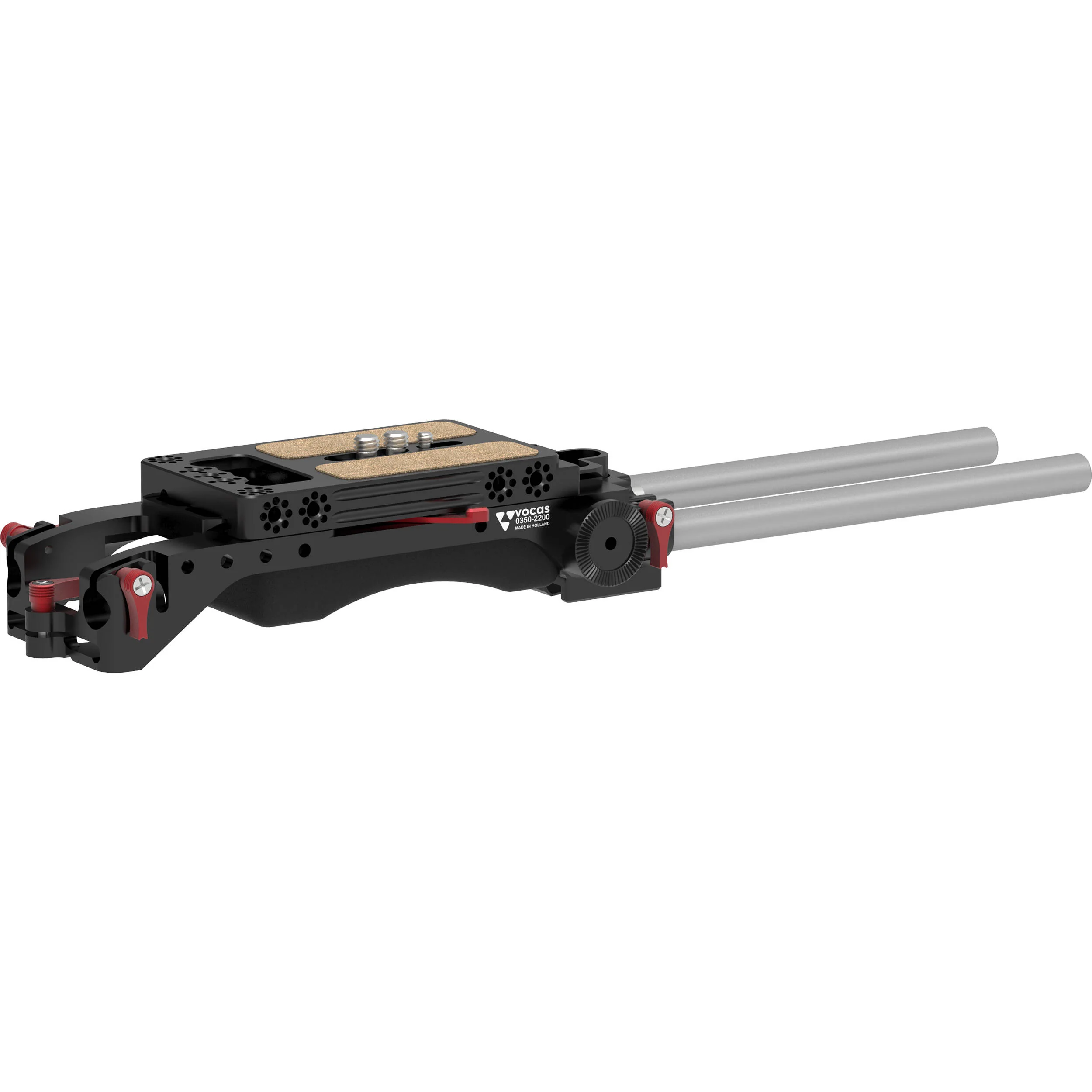

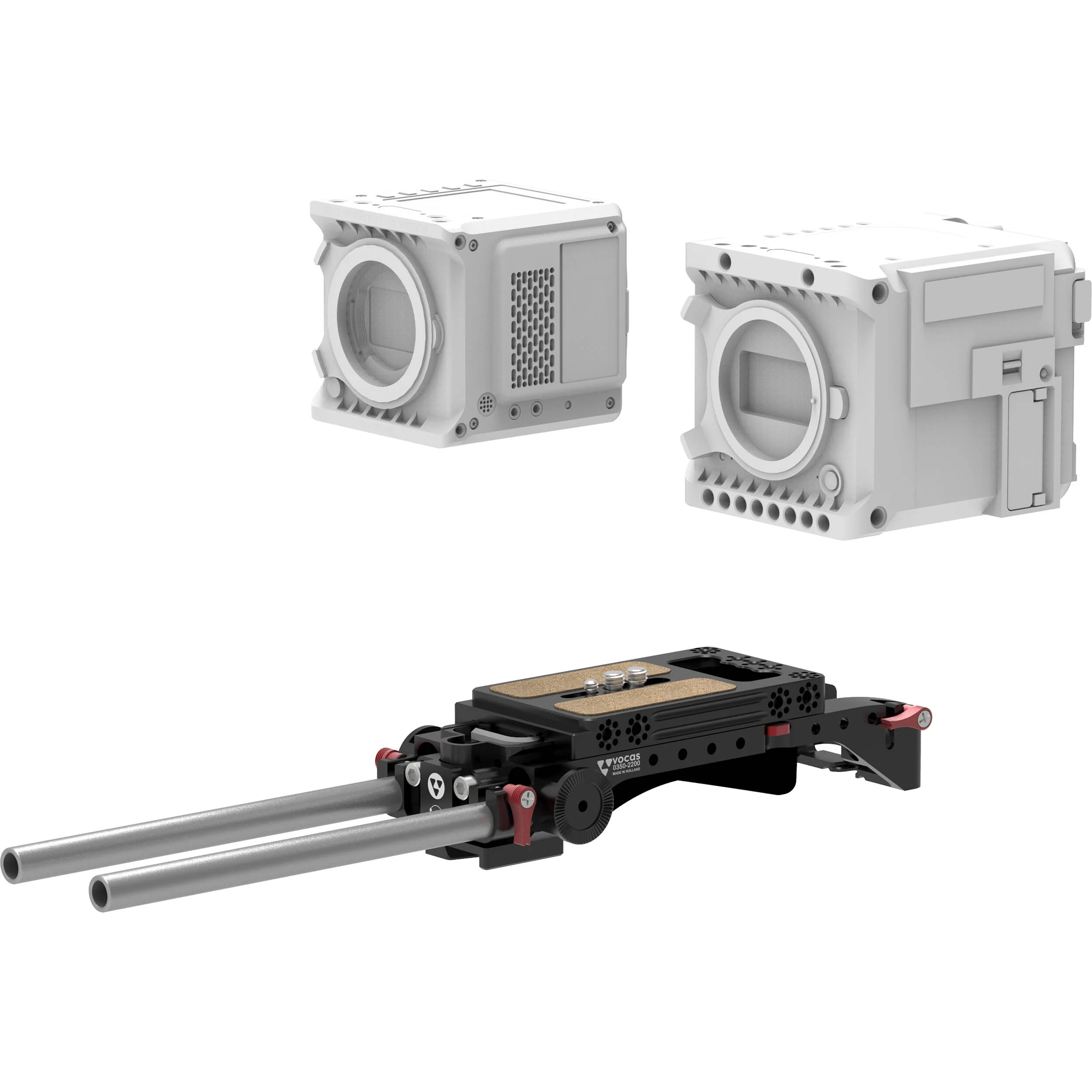

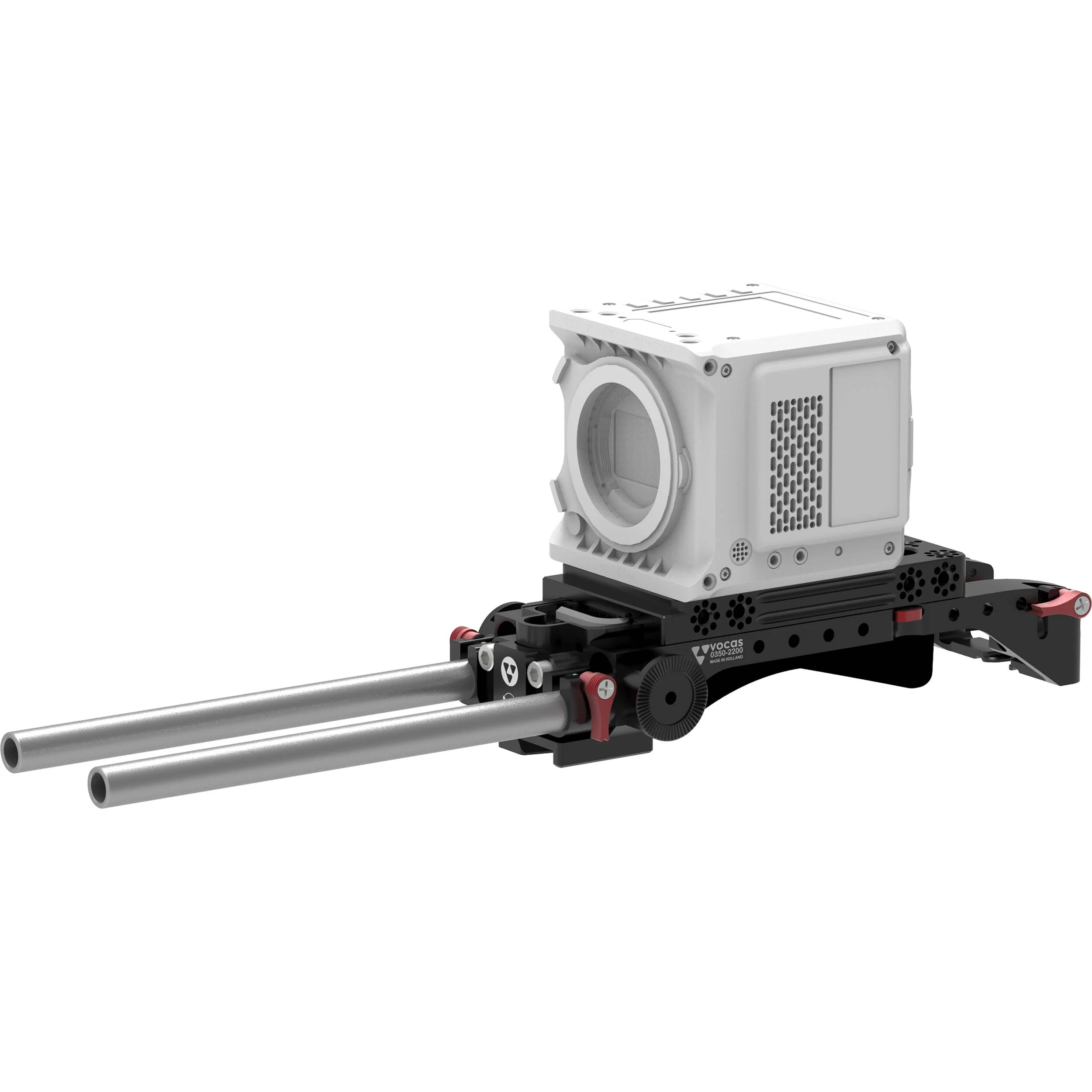

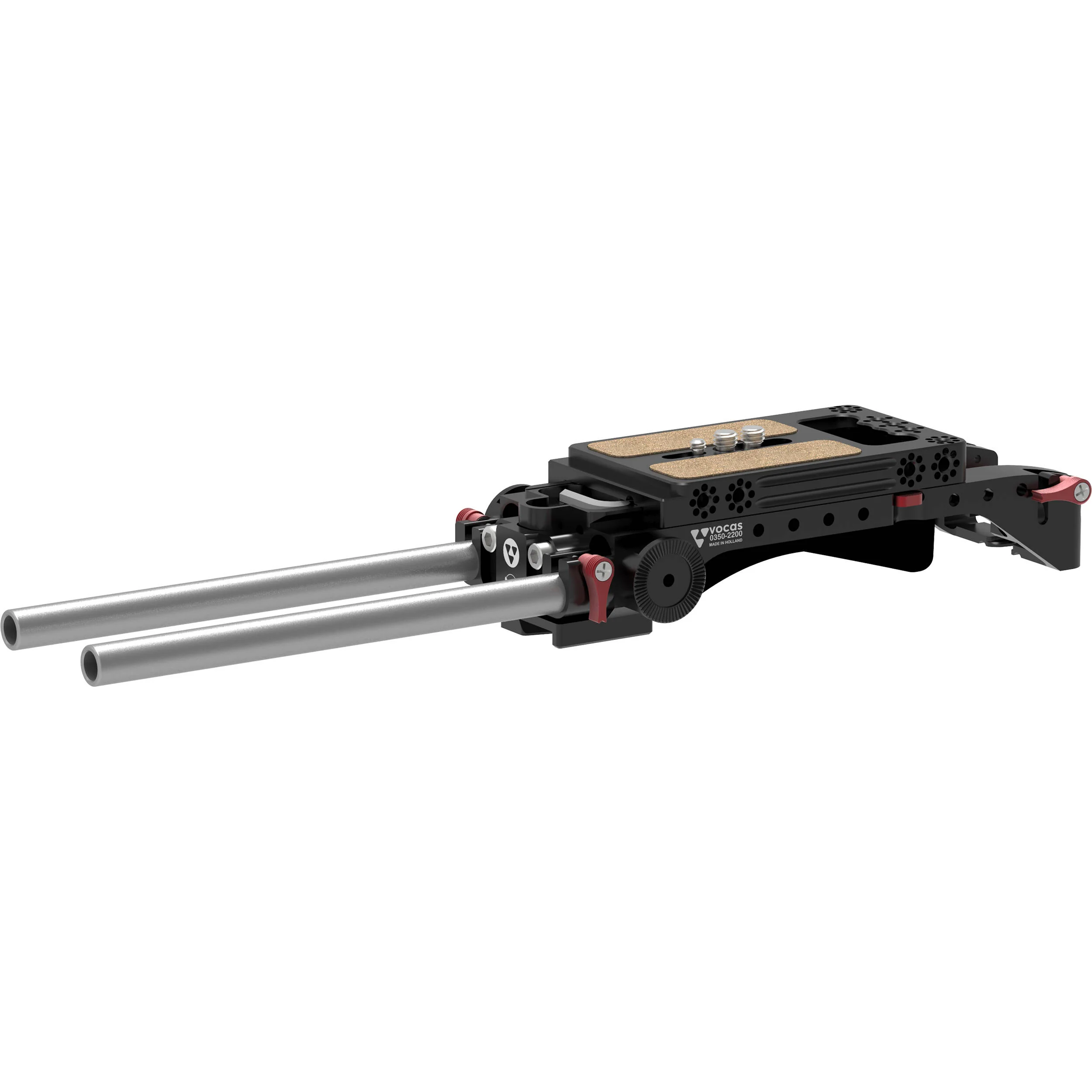

Adapt your RED KOMODO, KOMODO-X, or V-RAPTOR into a shoulder-mounted camera configuration using this USBP-15 MKII Shoulder Baseplate from Vocas. The USBP-15 MK II is a height-adjustable shoulder baseplate with a sliding adjustment system to achieve optimal balance. A dovetail adapter plate attaches directly to your cinema camera and can easily slide onto different dovetail-compatible systems.
Integrated ARRI rosettes on either side of the plate allow you to secure side handles, while a magnetic bottom can accept the included shoulder pad. The USBP-15 MKII is VCT-14 compatible for attachment to VCT-14 quick release plates without the need for tools. Two 15mm rods allow you to integrate lens support accessories into the rig.
In the Box
- Vocas USBP-15 MKII Shoulder Baseplate for RED KOMODO-X & V-RAPTOR
- Vocas Camera Adapter Plate for RED KOMODO-X & V-RAPTOR
- Vocas Standard Shoulder Pad for USBP-15 MKII Baseplate
- 2 x Vocas Single 15mm Rod (8.3")
- Limited 2-Year Manufacturer Warranty
Vocas USBP-15 MKII Specs
| Support Type |
Baseplate, Shoulder Support
|
| Grip Type |
No
|
| Camera Compatibility |
FREEFLY Ember S5K, RED KOMODO, RED KOMODO-X, RED V-RAPTOR
|
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Included Rods |
2x 8.3" / 21 cm 15 mm Aluminum Rod
|
| Battery Plate Type |
No
|
| Accessory Mounting |
Baseplate, Sides
12x 1/4"-20 Female Thread Adapter Plate, Sides 8x Anti-Twist 1/4"-20 Female Thread Adapter Plate, Top 5x Anti-Twist 1/4"-20 Female Thread |
| Camera Mounting |
ARRI Dovetail with 1/4"-20 Male Screw, 3/8"-16 Male Screw
|
| Tripod Mounting |
VCT-14
|
| Rod Ports |
2x 15 mm Rod Port
|
| Shoe Mounting |
No
|
| Rosettes |
2x Rosette w/ 1/4�-20 Female Thread
|
| Cable Clamp |
No
|
| Materials |
Rubber (Shoulder Pad)
Aluminum, Stainless Steel (Baseplate) Aluminum, Cork (Adapter Plate) |
| Dimensions |
9.8 x 4.2 x 2.3" / 249.5 x 106 x 58 mm (Without Rails)
|
| Weight |
1.94 lb / 0.88 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
