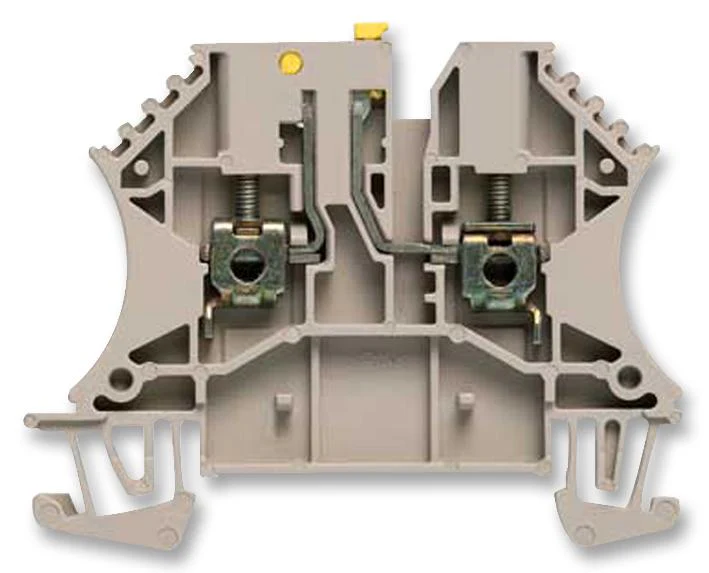

Weidmuller 1855620000 DIN Rail Mount Terminal Block 2 Ways 30 AWG 12 4 mm² Screw 24 A

The 1855620000 is a Test Disconnect Terminal made of WEMID. The WTR 2.5 STB2.3 modular terminals ensure optimum realization of all important circuits for the measurement of current, voltage and energy. Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. The W-series offers solutions for conductor cross-sections between 0.05 and 300mm² and for all standard electrical functions.

• Dark beige color
• UL94V-0 Flammability rating
• 3 Pollution severity
• Simple operation - Can be clipped to or removed from the terminal rail in either direction
• No maintenance - No need to retighten the clamping screw
• All parts captive within the terminal
• Highest contact force of all connection systems

Applications

Industrial

Other details

Brand	WEIDMULLER
Part Number	1855620000
Quantity	Each
Technical Data Sheet EN
