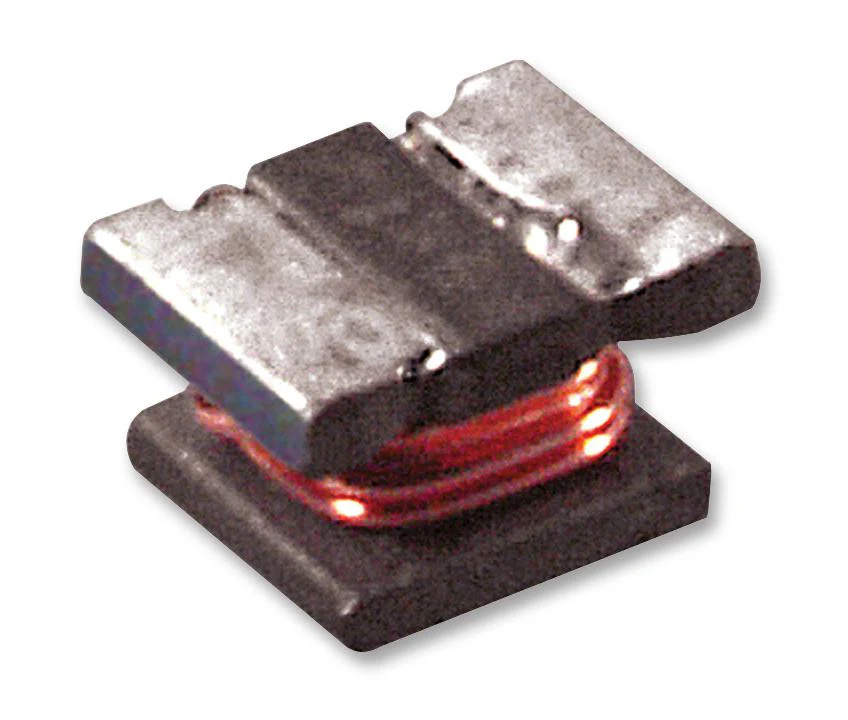

WURTH ELEKTRONIK 744045220 Surface Mount Power Inductor, WE-LQ Series, 22 µH, 630 mA, 1 A, Unshielded, 0.7 ohm
WURTH ELEKTRONIK 744045220 Surface Mount Power Inductor, WE-LQ Series, 22 µH, 630 mA, 1 A, Unshielded, 0.7 ohm
Product details
| Product Range | WE-LQ Series |
| Inductance | 22µH |
| RMS Current (Irms) | 630mA |
| Saturation Current (Isat) | 1A |
| Inductor Construction | Unshielded |
| DC Resistance Max | 0.7ohm |
| Power Inductor Case | 4.5mm x 3.2mm x 2.6mm |
| Inductance Tolerance | ± 10% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 744045220 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
