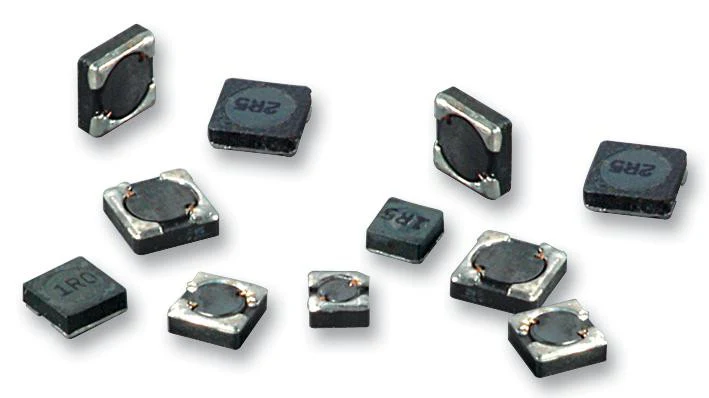

WURTH ELEKTRONIK 744062220 Surface Mount Power Inductor, WE-TPC Series, 22 µH, 1.22 A, 950 mA, Shielded, 0.12 ohm
WURTH ELEKTRONIK 744062220 Surface Mount Power Inductor, WE-TPC Series, 22 µH, 1.22 A, 950 mA, Shielded, 0.12 ohm
Product details
| Product Range | WE-TPC Series |
| Inductance | 22µH |
| RMS Current (Irms) | 1.22A |
| Saturation Current (Isat) | 950mA |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.12ohm |
| Power Inductor Case | 6.8mm x 6.8mm x 2.3mm |
| Inductance Tolerance | ± 30% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 744062220 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
