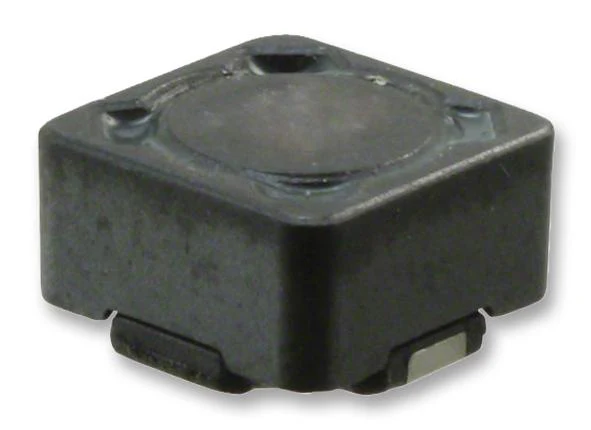

WURTH ELEKTRONIK 7447779168 Power Inductor (SMD), 68 µH, 870 mA, 950 mA, WE-PD Series, 7.3mm x 7.3mm x 4.5mm, Shielded
WURTH ELEKTRONIK 7447779168 Power Inductor (SMD), 68 µH, 870 mA, 950 mA, WE-PD Series, 7.3mm x 7.3mm x 4.5mm, Shielded
Product details
| Inductance | 68µH |
| RMS Current (Irms) | 870mA |
| Saturation Current (Isat) | 950mA |
| Product Range | WE-PD Series |
| Power Inductor Case | 7.3mm x 7.3mm x 4.5mm |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.38ohm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 7447779168 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
