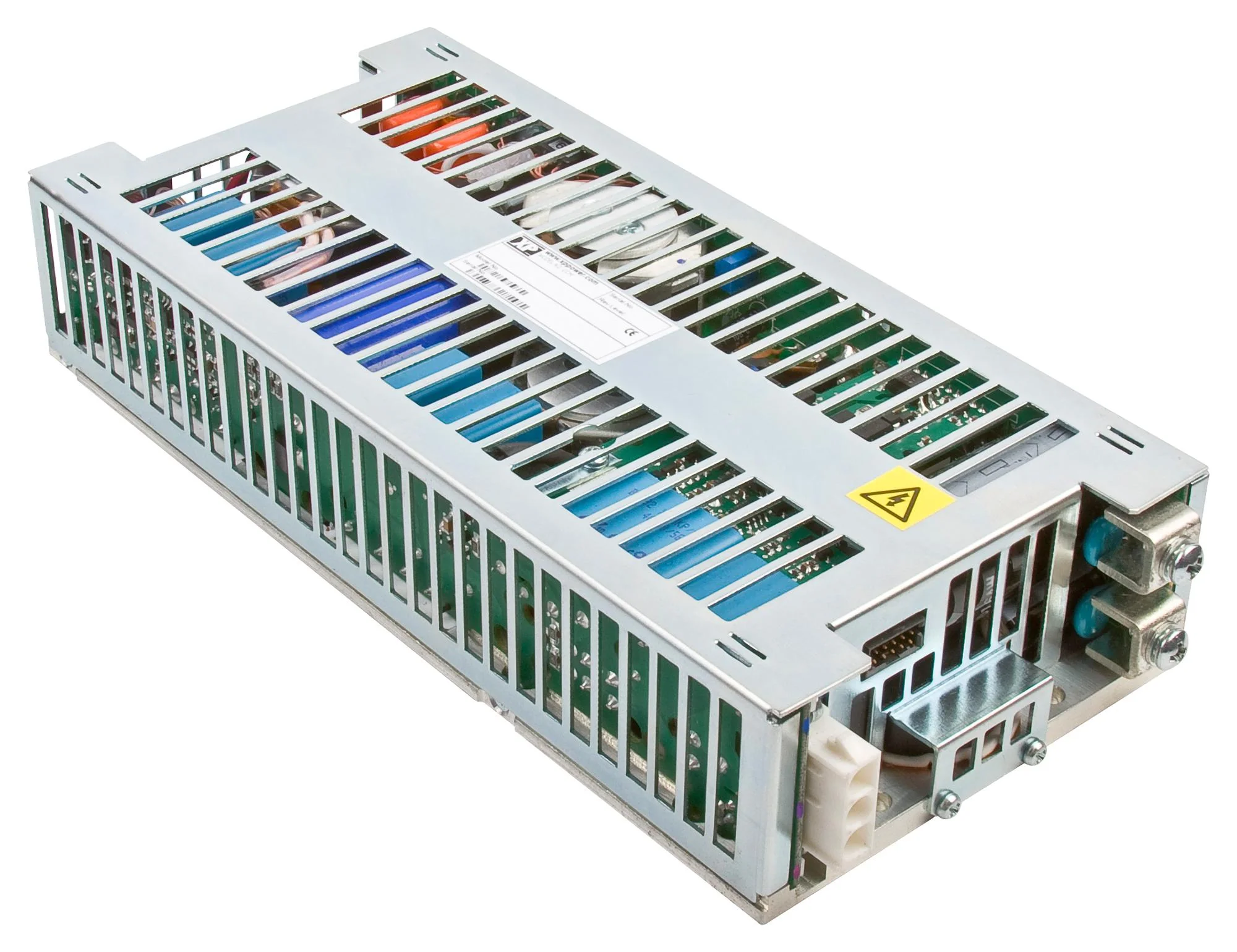

XP Power CCH600PS24 AC/DC Enclosed Supply (PSU) ITE 1 Outputs 603 W 24 V 25 A
The CCH series has been designed for use in electronic systems which need to operate in the harshest of environments. These electronic systems are typically sealed to protect them from the elements, thus making thermal management very challenging. The CCH power supplies are designed with the heat generating components directly attached to a baseplate which allows conducted heat to be easily passed from the equipment through a heatsink to the outside environment. This AC-DC single output product family, fitted with a 5V standby rail and interface signals also features efficiencies in excess of 90%. The discrete design of the CCH allows for all heat dissipating components to be connected to the baseplate, optimising efficiency and resulting in a very compact 8.4" (214mm) x 4" (102mm) x 1.69" (43mm) package and smaller heatsinking requirements. The addition of MIL-STD-461 EMC and MIL-STD-810 shock and vibration requirements mean that the product is suitable not only for a wide range of In
- 600W Baseplate Cooled
- Compact 8.4" (214mm) x 4" (102mm) x 1.69" (43mm) Package
- High Efficiency, up to 90%
- Baseplate Operating Temperature -40°C to 85°C
- No Fan, Quiet Operation
- MIL-STD-461 EMC
- MIL-STD-810F Shock & Vibration
- Remote Sense
- 5V Standby Output
- Remote On/Off & AC OK Signal
- Current Share for Parallel Operation
- Overtemperature Warning/Shutdown
Power Management, Industrial
Product details
| No. of Outputs | 1Outputs |
| Output Power Max | 603W |
| Output Voltage - Output 1 | 24V |
| Output Current - Output 1 | 25A |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Output Voltage - Output 4 | - |
| Output Current - Output 4 | - |
| Input Voltage AC Min | 90V |
| Input Voltage AC Max | 264V |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | CCH600 Series |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | XP POWER |
| Part Number | CCH600PS24 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
