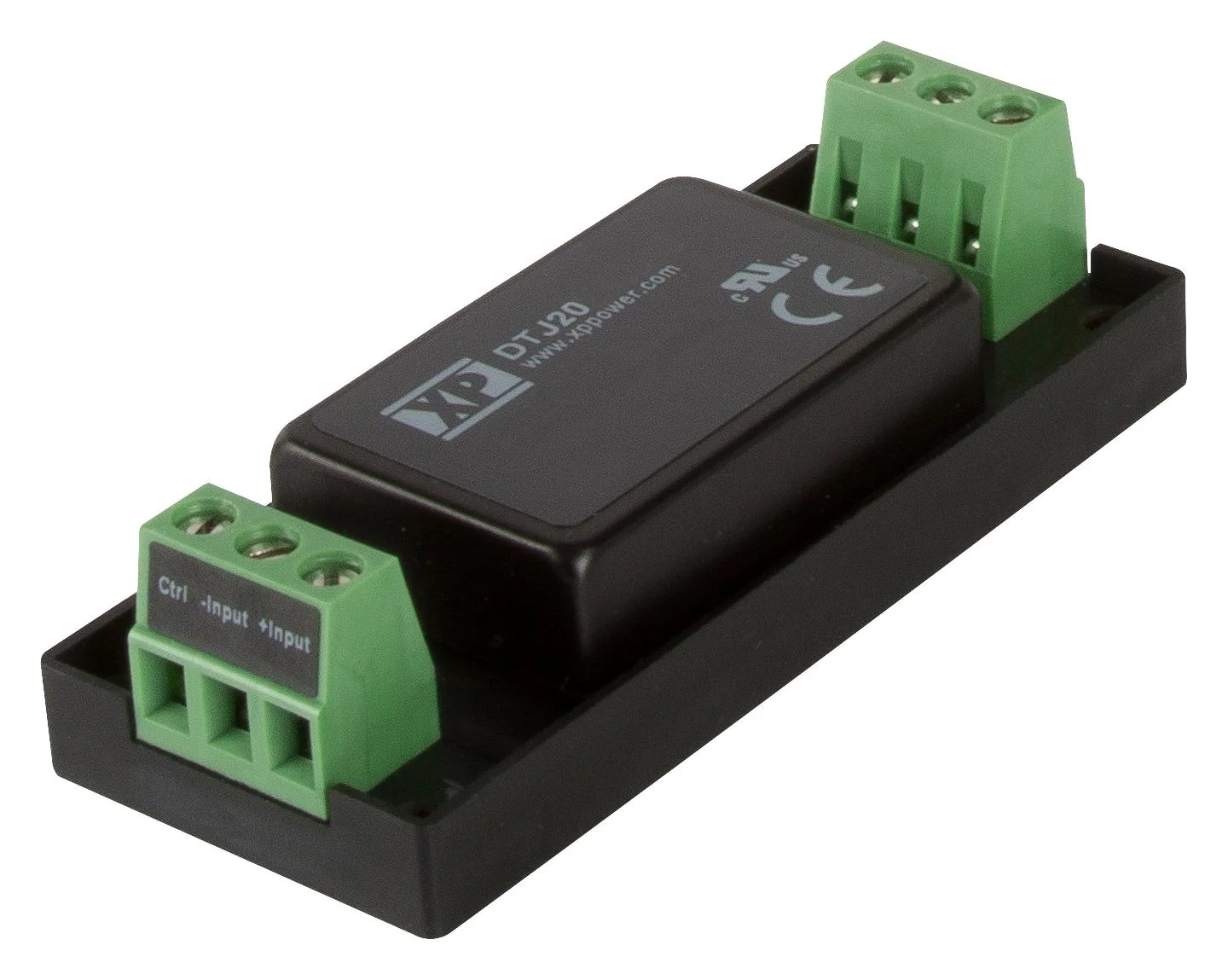

XP Power DTJ2024D15 Isolated Chassis Mount DC/DC Converter ITE 4:1 20 W 2 Output 15 V 665 mA

The DTJ20 series of chassis mount DC to DC power supplies allows for easy and convenient integration into a variety of industrial and commercial applications. The DC to DC power solution is constructed using lightweight materials featuring short circuit protection, input reverse polarity protection and soft start.

• Wide 4:1 input range
• IEC/UL/cUL62368-1 safety approvals
• EN55032 class A
• Remote on/off and voltage trim function
• 3KVDC isolation
• Operating temperature range from -40°C to +100°C
• Full power to 80°C
• Dimension is 3.00" x 1.24" x 0.77" (76.2mm x 31.4mm x 19.4mm)
• See Technical Note for information about XP Power's plans for the UKCA Marking

Other details

Brand	XP POWER
Part Number	DTJ2024D15
Quantity	Each
Technical Data Sheet EN
Certificate of Conformity EN
Technical Notes & Articles EN
