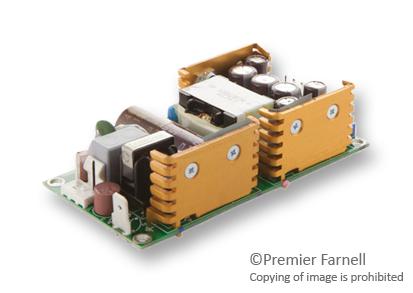

XP POWER ECM40UT31 AC/DC Open Frame Power Supply (PSU), ITE & Medical, 3 Output, 40 W, 90V AC to 264V AC
XP POWER ECM40UT31 AC/DC Open Frame Power Supply (PSU), ITE & Medical, 3 Output, 40 W, 90V AC to 264V AC
- Compact Size
- IT & Medical Approvals
- Convection Cooled
- Class I and II Construction
- Level B Conducted Emissions
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Medical
Product details
| Power Supply Applications: ITE & Medical |
| Power Rating (Forced Cooling): - |
| Power Rating (Convection Cooling): 40W |
| Input Voltage VAC: 90V AC to 264V AC |
| Power Supply Output Type: Adjustable, Fixed |
| Output Voltage - Output 1: 5VDC |
| Output Current - Output 1: 6A |
| Output Voltage - Output 2: 12VDC |
| Output Current - Output 2: 2A |
| Output Voltage - Output 3: -12VDC |
| Output Current - Output 3: 500mA |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Product Range: ECM40 Series |
Other details
| Brand | XP POWER |
| Part Number | ECM40UT31 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$97.90
XP POWER ECM40UT31 AC/DC Open Frame Power Supply (PSU), ITE & Medical, 3 Output, 40 W, 90V AC to 264V AC—
$97.90
More Images
XP POWER ECM40UT31 AC/DC Open Frame Power Supply (PSU), ITE & Medical, 3 Output, 40 W, 90V AC to 264V AC
- Compact Size
- IT & Medical Approvals
- Convection Cooled
- Class I and II Construction
- Level B Conducted Emissions
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Medical
Product details
| Power Supply Applications: ITE & Medical |
| Power Rating (Forced Cooling): - |
| Power Rating (Convection Cooling): 40W |
| Input Voltage VAC: 90V AC to 264V AC |
| Power Supply Output Type: Adjustable, Fixed |
| Output Voltage - Output 1: 5VDC |
| Output Current - Output 1: 6A |
| Output Voltage - Output 2: 12VDC |
| Output Current - Output 2: 2A |
| Output Voltage - Output 3: -12VDC |
| Output Current - Output 3: 500mA |
| Output Voltage - Output 4: - |
| Output Current - Output 4: - |
| Product Range: ECM40 Series |
Other details
| Brand | XP POWER |
| Part Number | ECM40UT31 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
