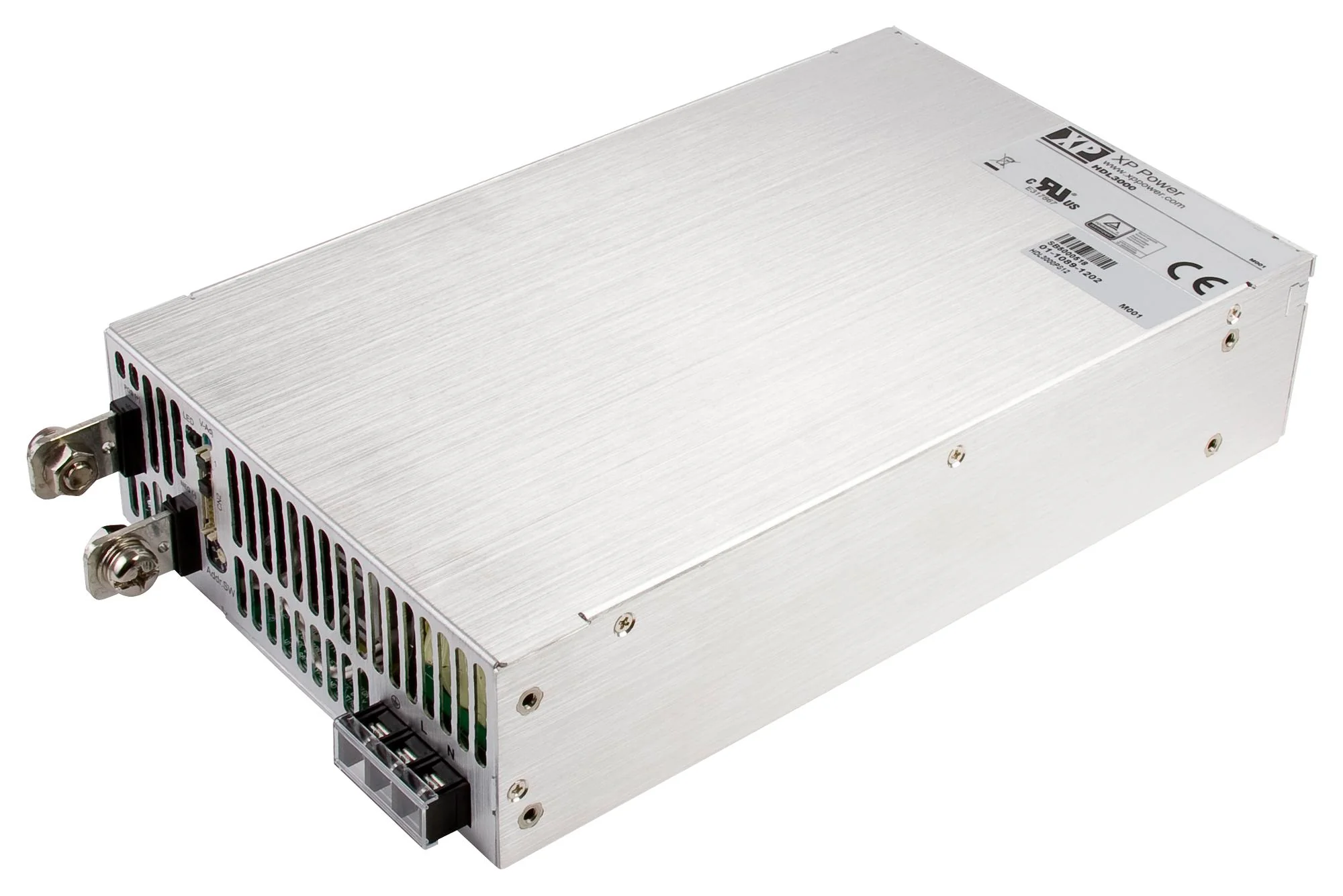

XP Power HDL3000PS150 AC/DC Enclosed Supply (PSU) ITE 1 Outputs 3 kW 150 VDC 20 A

The HDL3000HV series offers users both output voltage and output current programming (0 - 105%) via resistance, voltage or digital bus in a very high efficiency, high power density 3 kW chassis mount package. Measuring just 6.69" x 2.52" x 11.02", the HDL3000 also features active current sharing, built-in ORing diode, remote on/off and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5 V at 0.5 A or 9V at 0.3 A.

• High Efficiency to 92%
• High power density
• Programmable Output Voltage (0-105%)
• Programmable Output Current (0-105%)
• I2C, RS485 & RS232 interfaces
• Parallel operation
• Fully featured signals & controls
• 3 Year Warranty
• See Technical Note for information about XP Power's plans for the UKCA Marking

Other details

Brand	XP POWER
Part Number	HDL3000PS150
Quantity	Each
Technical Data Sheet EN
Technical Notes & Articles EN
Certificate of Conformity EN
