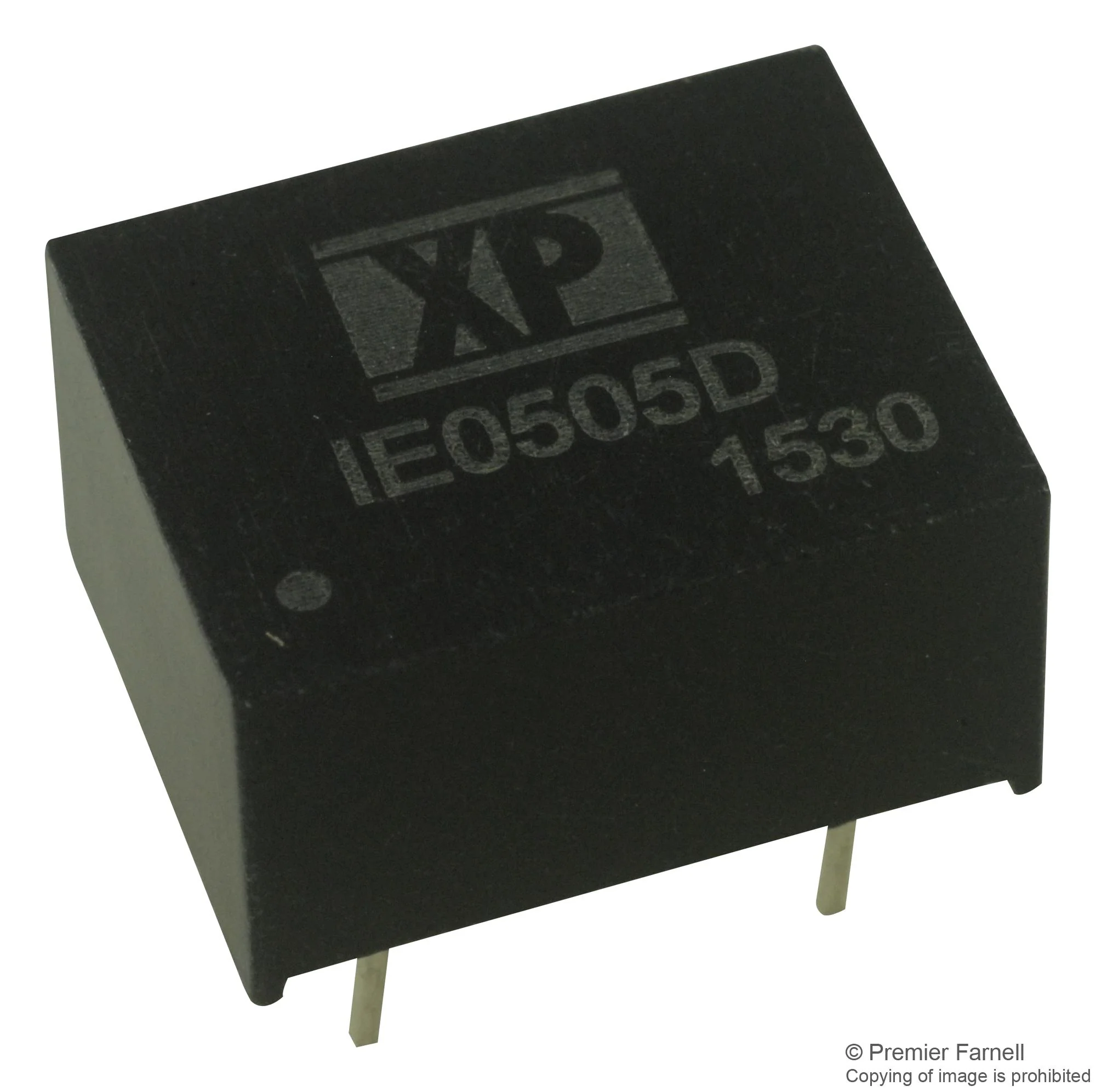

XP POWER IE0505D 1 Watt DIP Dual Output DC/DC Converter, Input 5V, Output ±5V/200mA
Product details
| No. of Outputs | 1 Output |
| Output Power Max | 1W |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 1 | 200mA |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | IE Series |
| Input Voltage DC Min | 4.5V |
| Input Voltage DC Max | 5.5V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | DIP |
| DC / DC Converter Mounting | Through Hole |
| Approvals & Standards | - |
| Width | 10.14mm |
| Height | 6.86mm |
| Depth | 12.7mm |
Other details
| Brand | XP POWER |
| Part Number | IE0505D |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
