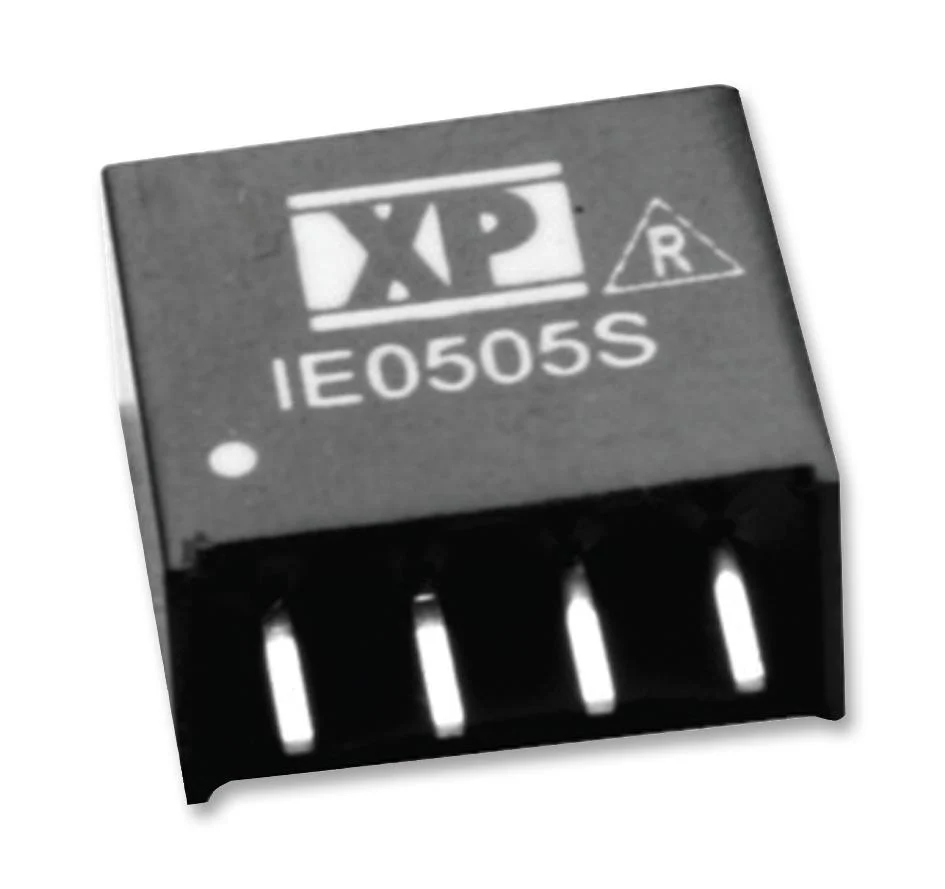

XP Power IE2405S Isolated Through Hole DC/DC Converter 1kV Isolation ITE 1:1 1 W Output 5 V 200 mA

IE series is a unregulated, single output DC-DC converter. The IE series is housed in a SIP4 plastic case for PCB mounting. It provides 1kVDC isolation between input and output as standard.

• MTBF >1.1MHrs
• 3 year warranty
• Input voltage is 24VDC
• No load input current is 10mA
• Output voltage is 5V
• Output current is 200mA
• Efficiency is 75%
• Maximum capacitive load is 220µF
• Non conductive plastic (UL94V-0 rated) case material
• Operating temperature is -40°C to +85°C

Other details

Brand	XP POWER
Part Number	IE2405S
Quantity	Each
Technical Data Sheet EN
Certificate of Conformity EN
Technical Notes & Articles EN
