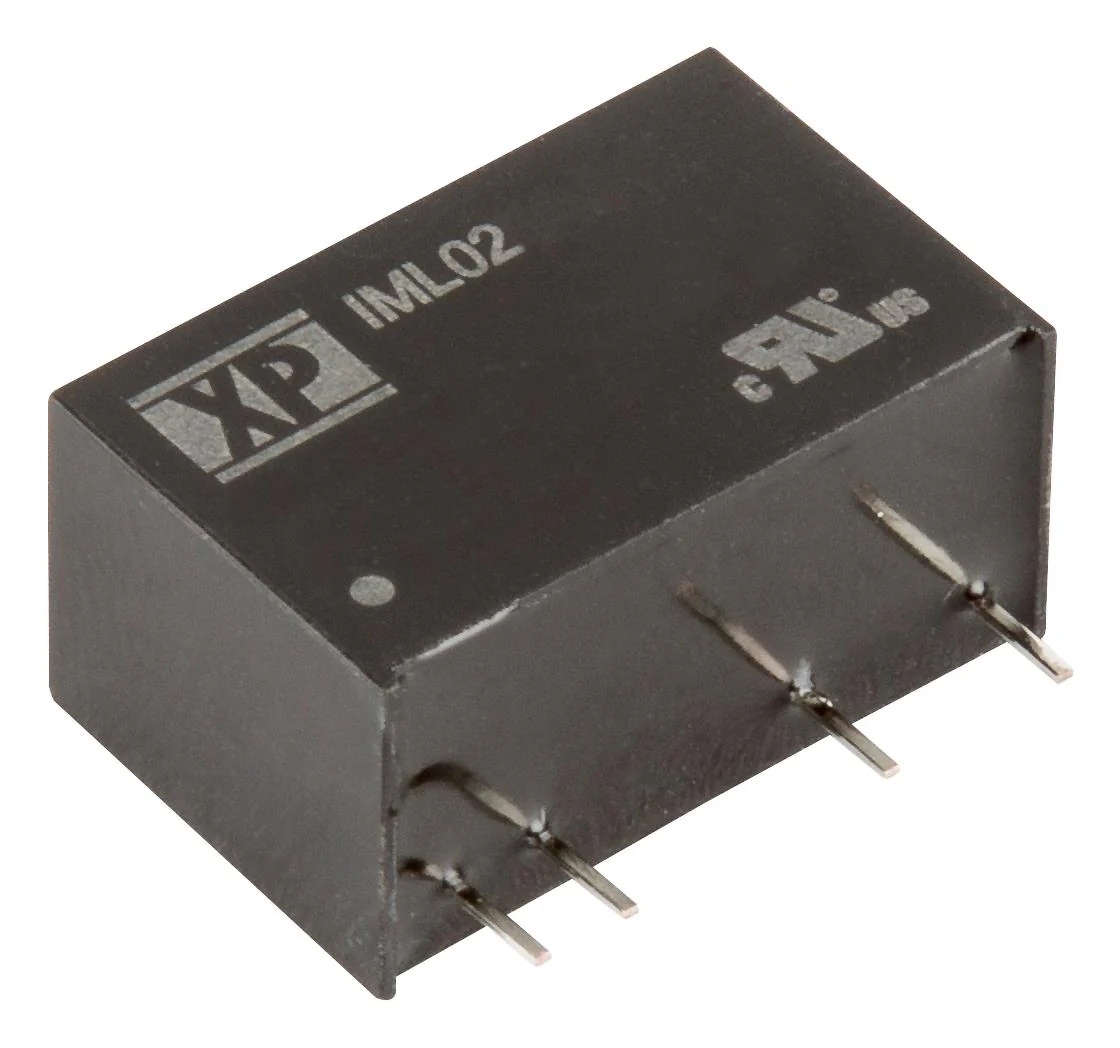

XP Power IML0212S12 Isolated Through Hole DC/DC Converter Medical 1:1 2 W 1 Output 12 V 167 mA

The IML02 series is a 2W, single and dual output DC to DC converter in 7 pin SIP package with worldwide medical approvals, continuous short circuit protection and conducted and radiated EN55011 class B EMC emissions. The safety approvals include UL, ANSI/AMMI ES60601-1, CSA C22.2 No. 60601-1, TUV, EN60601-1, CB and IEC60601-1.

• World Wide Medical Approvals
• Single & Dual Outputs
• SIP7 Package
• Operating Temperature -40°C to 85°C
• Full Load at 85°C Ambient
• 4000VAC Isolation, 1 x MOPP at 300VAC
• 2µA Patient Leakage Current
• See Technical Note for information about XP Power's plans for the UKCA Marking

Applications

Power Management, Industrial, Medical

Other details

Brand	XP POWER
Part Number	IML0212S12
Quantity	Each
