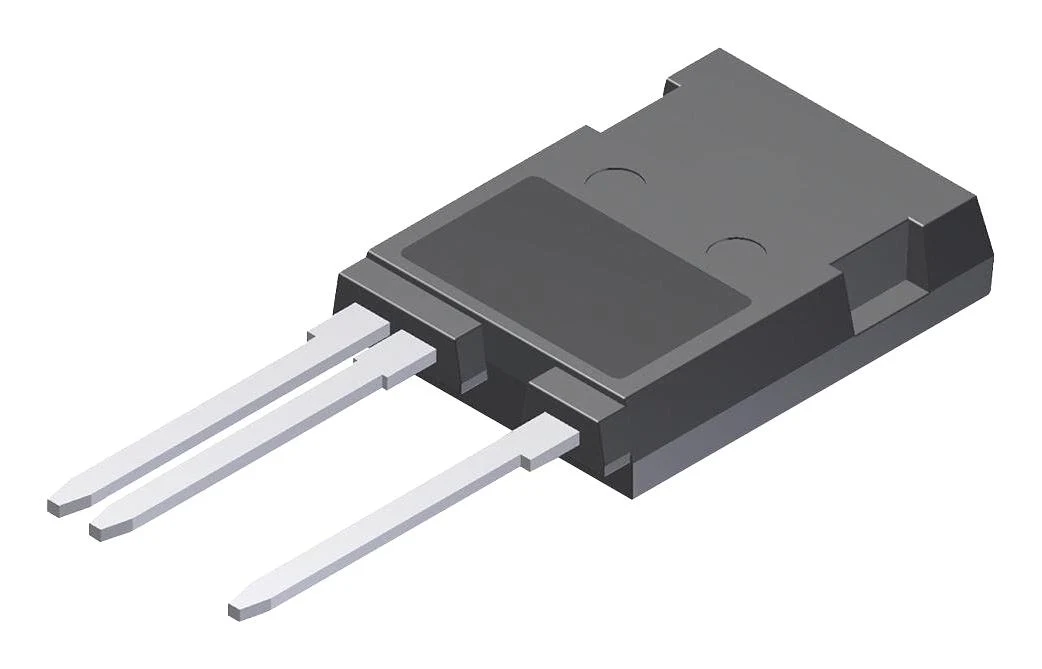

LITTELFUSE IXYH30N450HV IGBT, 60 A, 3.2 V, 430 W, 4.5 kV, TO-247HV, 3 Pins
High voltage XPT� IGBT suitable for use in switch-mode and resonant-mode power supplies, Uninterruptible Power Supplies (UPS), laser generators, capacitor discharge circuits and AC switches applications.
- High voltage packages
- High blocking voltage
- High peak current capability
- Low saturation voltage
- Low gate drive requirement
- High power density
Product details
| Continuous Collector Current: 60A |
| Collector Emitter Saturation Voltage: 3.2V |
| Power Dissipation: 430W |
| Collector Emitter Voltage Max: 4.5kV |
| Transistor Case Style: TO-247HV |
| No. of Pins: 3Pins |
| Operating Temperature Max: 150°C |
| Transistor Mounting: Through Hole |
| Product Range: - |
| MSL: - |
Other details
| Brand | LITTELFUSE |
| Part Number | IXYH30N450HV |
| Quantity | Each |
| Technical Data Sheet EN |  |
