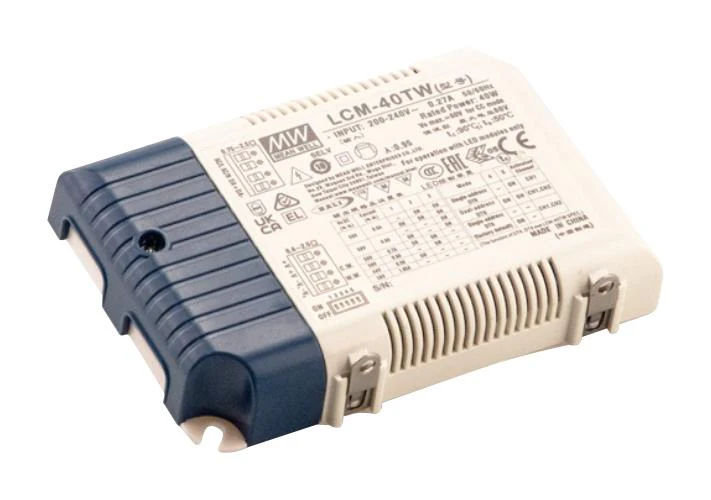

Mean Well LCM-40TW LCM-40TW LED Driver Lighting 40 W 50 V 700 mA Constant Current Voltage 180 VAC New
Mean Well LCM-40TW LCM-40TW LED Driver Lighting 40 W 50 V 700 mA Constant Current Voltage 180 VAC New
LCM-40TW is a constant power output LED driver with two channels output for tunable white function. Thanks to high efficiency up to 87%, it is able to operate for -30°C~85°C case temperature under free air convection. LCM-40TW is designed based on DALl-2 DT8 tunable white and is also usable as two independent output channels with DT6 function. LCM-40TW can be adjusted for light intensity and colour temperature by a push button as a simple way dimming, so it provides the design flexibility for LED Lighting application. Typical applications are tunable white lighting, human centric lighting(HCL), downlight, panel light, decorative light, commercial lighting, DALl digital lighting.
- Constant power mode output with 2 channels
- Plastic housing with class II and PFC design
- Flick free, complying with lEEE1789
- Standby power consumption <0.5W
- Cooling by free air convection
- 5 years warranty
- Rated wattage is 40W
- Minimum dimming level is 0.2%
Product details
| Power Supply Applications | LED Lighting |
| Output Power Max | 40W |
| Output Voltage Max | 50V |
| Output Current | 700mA |
| LED Driver Mode | Constant Current, Constant Voltage |
| Input Voltage Min | 180VAC |
| Input Voltage Max | 277VAC |
| Product Range | - |
Other details
| Brand | MEAN WELL |
| Part Number | LCM-40TW |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
