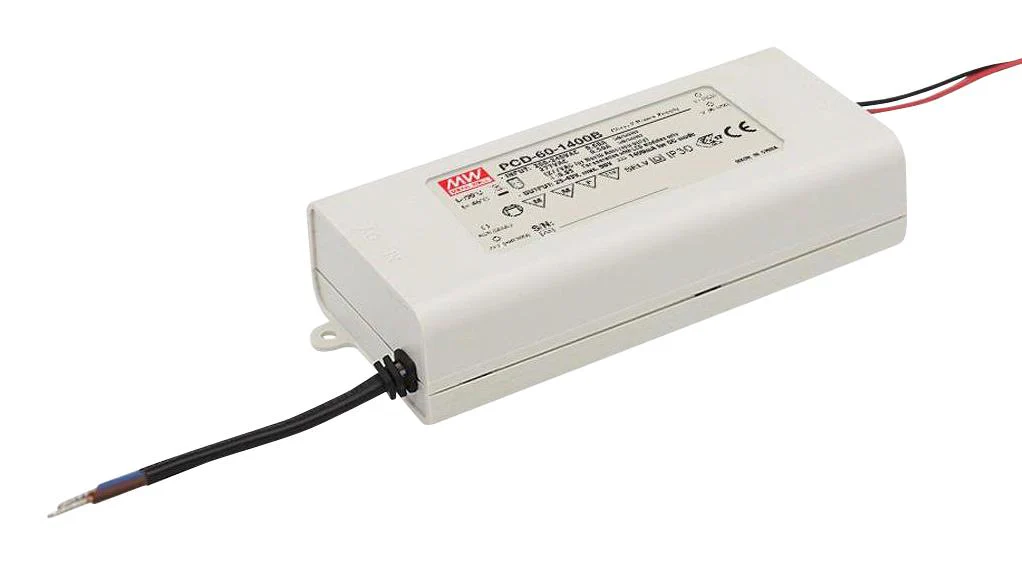

Mean Well PCD-60-1400B PCD-60-1400B LED Driver Lighting 60.2 W 43 V 1.4 A Constant Current 180 VAC New
Mean Well PCD-60-1400B PCD-60-1400B LED Driver Lighting 60.2 W 43 V 1.4 A Constant Current 180 VAC New
- AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
- Built-in active PFC function, constant current design
- Protections: short circuit / overtemperature
- Cooling by free air convection, fully isolated plastic case
- IP42 design, class II power unit, no FG
- Suitable for LED related fixture or appliance (such as LED decoration or advertisement devices)
- 100% full load burn-in test, low cost, high reliability, 3 years warranty
- 1400mA output rated current, 25 ~ 43V operating output voltage range
- 60.2W output rated power, 87% typical efficiency
- Working temperature range from -30 to +45°C, dimension(L x W x H) is 128 x 60 x 31.5mm
Other details
| Brand | MEAN WELL |
| Part Number | PCD-60-1400B |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
