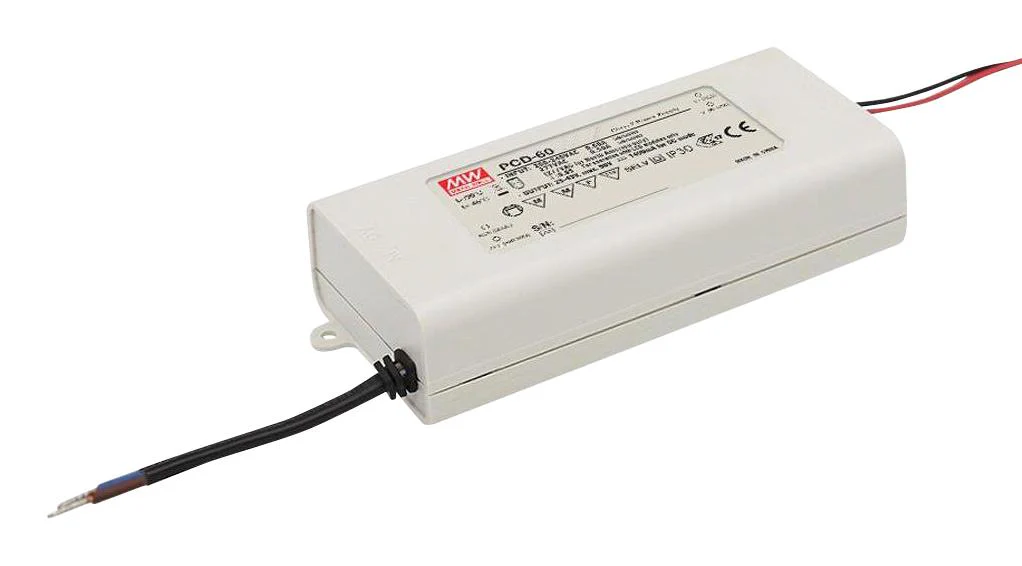

Mean Well PCD-60-500B PCD-60-500B LED Driver Lighting 54 W 108 V 500 mA Constant Current 180 VAC New
Mean Well PCD-60-500B PCD-60-500B LED Driver Lighting 54 W 108 V 500 mA Constant Current 180 VAC New
- AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
- Built-in active PFC function, constant current design
- Protections: short circuit / overtemperature
- Cooling by free air convection, fully isolated plastic case
- IP42 design, class II power unit, no FG
- Suitable for LED related fixture or appliance (such as LED decoration or advertisement devices)
- 100% full load burn-in test, low cost, high reliability, 3 years warranty
- 500mA output rated current, 70 ~ 108V operating output voltage range
- 54W output rated power, 87% typical efficiency
- Working temperature range from -30 to +45°C, dimension(L x W x H) is 128 x 60 x 31.5mm
Other details
| Brand | MEAN WELL |
| Part Number | PCD-60-500B |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Mean Well PCD-60-500B PCD-60-500B LED Driver Lighting 54 W 108 V 500 mA Constant Current 180 VAC New
- AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
- Built-in active PFC function, constant current design
- Protections: short circuit / overtemperature
- Cooling by free air convection, fully isolated plastic case
- IP42 design, class II power unit, no FG
- Suitable for LED related fixture or appliance (such as LED decoration or advertisement devices)
- 100% full load burn-in test, low cost, high reliability, 3 years warranty
- 500mA output rated current, 70 ~ 108V operating output voltage range
- 54W output rated power, 87% typical efficiency
- Working temperature range from -30 to +45°C, dimension(L x W x H) is 128 x 60 x 31.5mm
Other details
| Brand | MEAN WELL |
| Part Number | PCD-60-500B |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- AC phase-cut dimming, work with leading edge and trailing edge TRIAC dimmers
- Built-in active PFC function, constant current design
- Protections: short circuit / overtemperature
- Cooling by free air convection, fully isolated plastic case
- IP42 design, class II power unit, no FG
- Suitable for LED related fixture or appliance (such as LED decoration or advertisement devices)
- 100% full load burn-in test, low cost, high reliability, 3 years warranty
- 500mA output rated current, 70 ~ 108V operating output voltage range
- 54W output rated power, 87% typical efficiency
- Working temperature range from -30 to +45°C, dimension(L x W x H) is 128 x 60 x 31.5mm
Other details
| Brand | MEAN WELL |
| Part Number | PCD-60-500B |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
