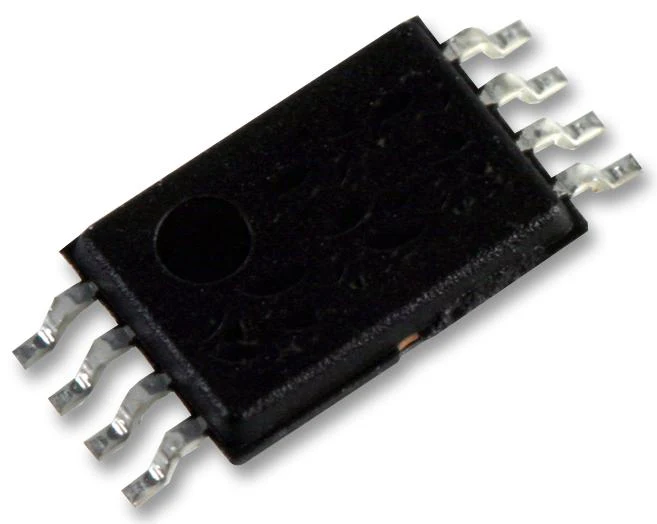

Microchip AT24C512C-XHD-B Eeprom 512 Kbit 64K x 8bit Serial I2C (2-Wire) 1 MHz Tssop 8 Pins

The AT24C512C-XHD-B is a 512kB Serial EEPROM IC with full memory write-protect, supports up to four devices on a single 2-wire bus. The EEPROM is organized as 65,536 words x 8-bit. Optimized for applications where low-power and low-voltage operations are essential. The EEPROM operates from 2.5 to 5.5VCC.

• 2-wire Serial interface
• Schmitt trigger, filtered inputs for noise suppression
• Bidirectional data transfer protocol
• 400kHz (1.7V) and 1MHz (2.5, 5.5V) compatibility
• Write protect pin for hardware data protection
• 128-byte page write mode - Partial page writes allowed
• Random and sequential read modes
• Self-timed write cycle (5ms maximum)
• High reliability - 1,000,000 write cycles endurance

Applications

Industrial, Commercial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	AT24C512C-XHD-B
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
