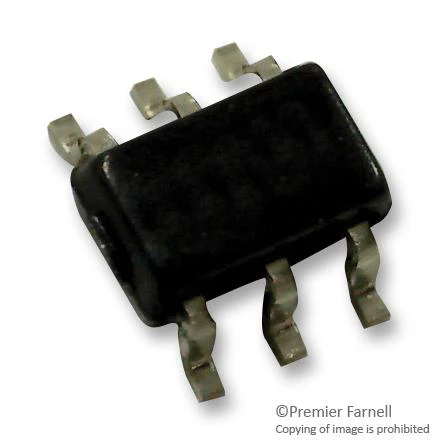

Texas Instruments SN74LVC2G17DBVT Buffer 74LVC2G17 1.65 V to 5.5 SOT-23-6

The SN74LVC2G17DBVT is a dual Schmitt-Trigger Buffer with two buffers and performs the Boolean function Y = A. The device functions as two independent buffers, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals.

• Schmitt-trigger inputs provide hysteresis
• 5.4ns at 3.3V Maximum TPD
• Low power consumption
• IOFF supports live insertion, partial-power-down mode and back-drive protection
• Latch-up performance exceeds 100mA per JESD 78
• ESD protection exceeds JESD 22

Applications

Audio, Imaging, Video & Vision, Portable Devices, Embedded Design & Development, Communications & Networking, Wireless

Warnings This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	SN74LVC2G17DBVT
Quantity	Each (Supplied on Cut Tape)
